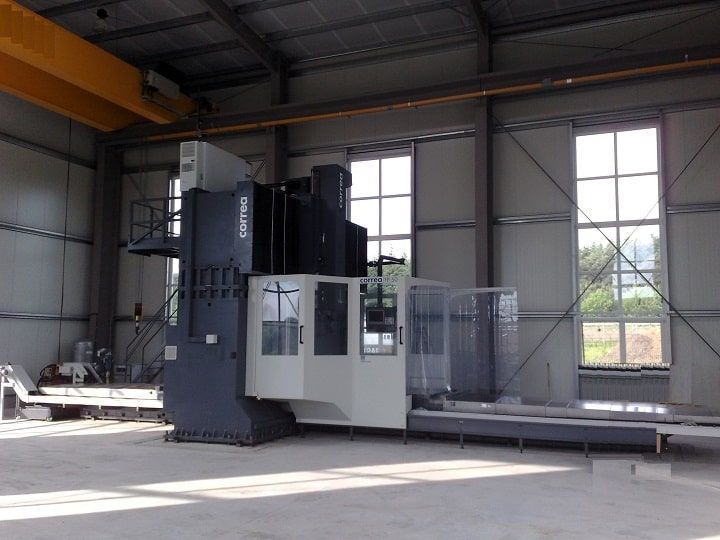

Correa FP50/80 6000 rpm

Type: Bridge type
Control: HEIDENHAIN TNC-i530
Year of manufacture: 2010
Retrofitted: 2025/2026

X axis travel: 8000 mm
Y axis travel: 3800 mm
Z axis travel: 1500 mm
Vertical capacity (VC): 168 / 1168 mm
Distance between columns: 3100 mm

Table dimensions: 8500 x 2500 mm
Maximum table load: 35000 kg
Number of T slots: 17
T slot size: 22 mm

Milling head type: Auto-indexing differential head (UAD - 0.02º)
Tool clamping system: Hydraulic
Spindle taper: ISO50 (DIN69871)
Pull stud: DIN69872
Spindle speed: 6000 rpm
Spindle power: 30 kW
Rapid feedrate (X / Y, Z): 7200 / 12000 mm/min

Automatic tool changer: ATC-60
Chip conveyor: 2 longitudinal hinge type
Electronic handwheel: HR-510
Coolant: External & internal high pressure through spindle
Guarding: 2 sliding doors with perimetral wire-mesh safety fence

Machine weight: 79000 kg
Machine dimensions: 22700 x 7660 x 6800 mm

Guarantee: 6 months mechanical spare parts
Condition: Refurbishment ongoing
