Correa FP30/30 5000 rpm.
Ref :
2719516-3-MT
Condition :
Used
Manufacturer :
Correa
Model :
FP30/30
Spindle Size :
-
Spindle Speed :
5000 rpm.
Year(s) :
2002
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

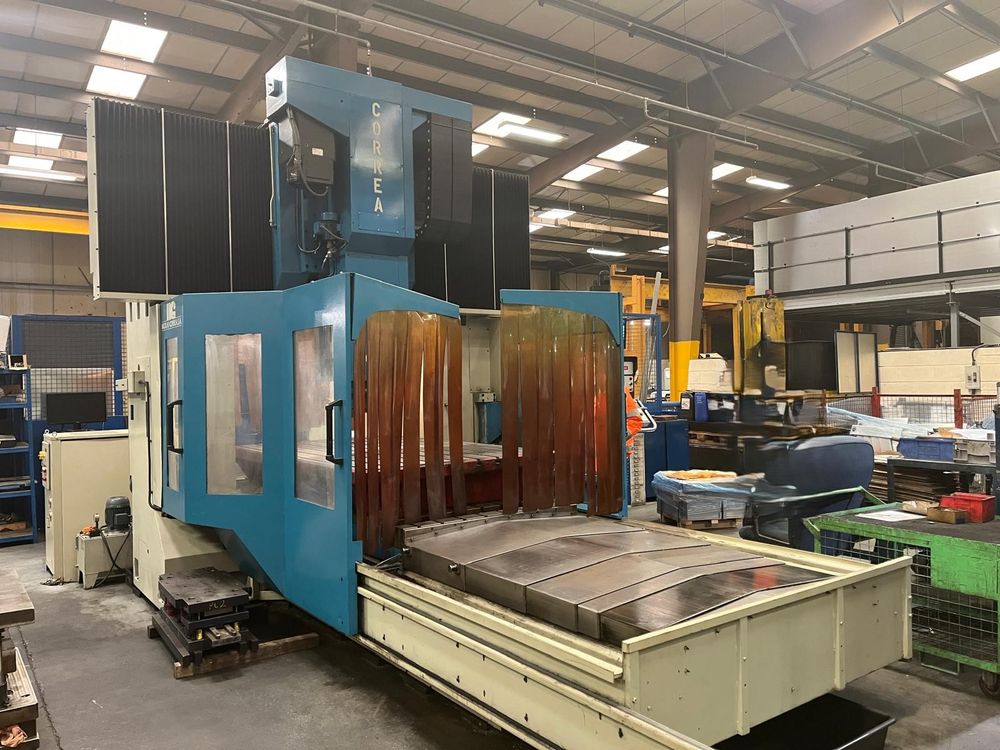

CORREA FP30/30
Year 2002
Gantry Mill with Heidenhain 426 CNC Control.
Table size 3000mm x 1250mm. 8 x T Slots 8 x 22mm.
Distance between columns 1740mm.
Longitudinal travel 2500mm.
Cross travel of Milling Spindle 2000mm.
Vertical travel of quill 800mm.
Spindle Taper ISO 50.
Spindle speeds 311-5000 rpm.
Feeds range 2mm-7500mm/min.
Rapids X 15000mm/min. Y & Z 12000mm/min.
Maximum loading on table 10,000 kg.
Universal Milling Head.
Manual Tool change (No ATC).
Machine dimensions 7000mm x 5000mm x 3950mm high.
Approximate weight of machine 25,500 kg.
