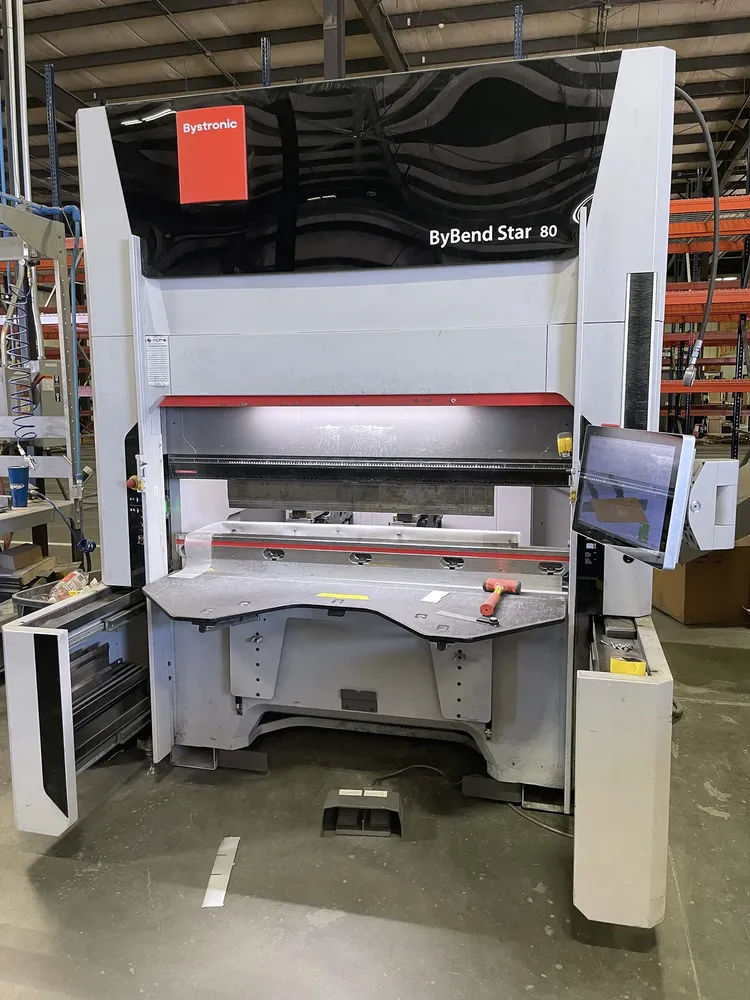

Bystronic BYBEND 80/1530 88 ton capacity

X-axis travel: 11.8"
X-axis speed: 3543 in/min
R-axis travel: 3.9"
R-axis speed: 1181 in/min
Z-axis travel: 57.3"
Z-axis speed: 4724 in/min
Maximum Y approach speed: 591 in/min
Maximum Y working speed: 59 in/min
Control: ByVision Bending with 22" Full HD touchscreen
Bending length: 60.2"
Stroke: 7.9"
Open height: 20.3"
Distance between side frames: 61.8"
Table width: 2.4"
Maximum back gauge range (X-axis): 19.7"
Mobile bending robot
Servo-hydraulic drive system
6-axis back gauge
Productive clamping pack RF-A Pro tooling
Custom gripper tooling
LED lighting
Ergo arm support
Tool and bend foot switch
Optical bend guiding system
Upper tool clamping
Fast Bend G2 safety system with manual height adjustment
