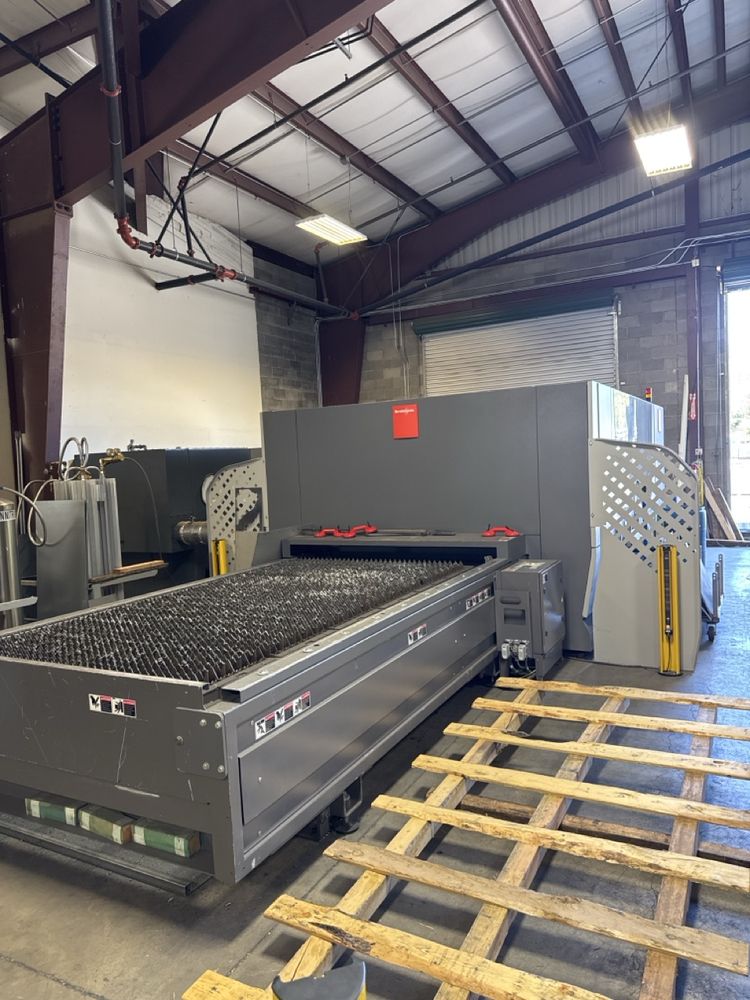

Bystronic BYSMART CNC CONTROL

Power: 3000 W
Range of adjustment: 300–3000 W
Wavelength: Fiber
Steel max cutting thickness: 0.75 in
Stainless steel max cutting thickness: 0.47 in
Aluminum max cutting thickness: 0.47 in
Brass max cutting thickness: 0.25 in
Copper max cutting thickness: 0.25 in
Length: 413 in
Width: 272 in
Height: 113 in
Nominal sheet size (X): 120 in
Nominal sheet size (Y): 60 in
Cutting area (X): 122 in
Cutting area (Y): 62 in
Cutting area (Z): 4 in
Max positioning speed parallel axis X/Y: 3937 in/min
Max simultaneous positioning speed: 5511 in/min
Bilateral repeatability of positioning of one axis R: 0.002 in
Bilateral position deviation of one axis M: 0.004 in
Edge detection accuracy: ±0.02 in
Max workpiece weight: 2425 lbs
Max workpiece weight on both shuttle tables: 4050 lbs
Machine weight: 26015 lbs
Table changeover time: 27 s
