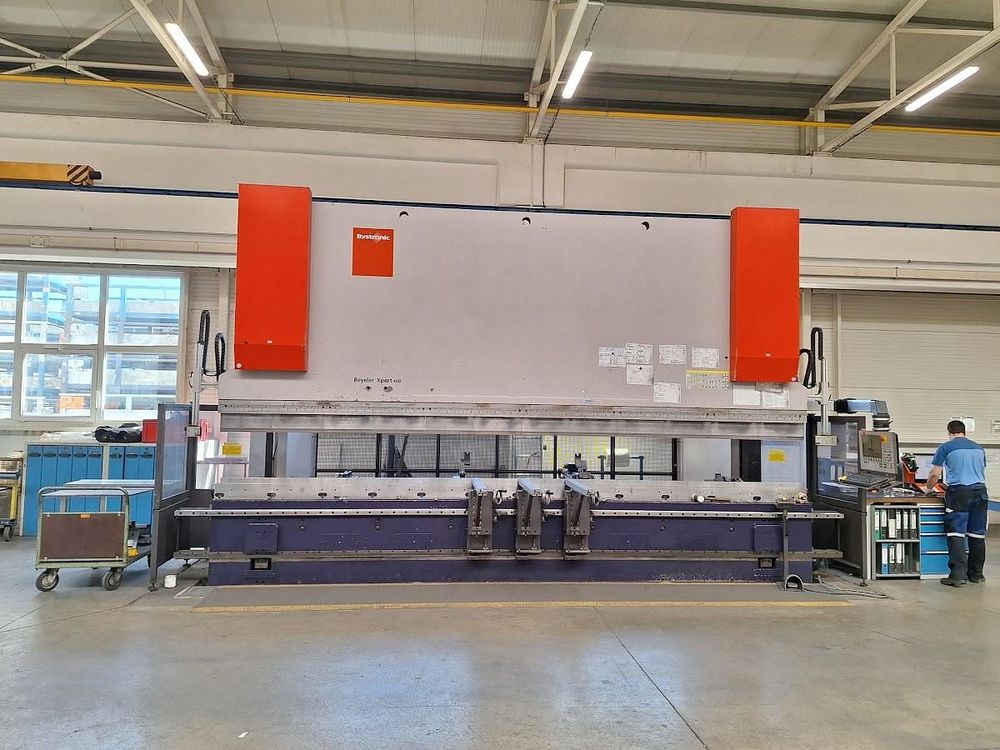

Bystronic XPERT 400 x 6200 400 Ton

BYSTRONIC XPERT 400 x 6200
Year 2008

Bending length mm.6000
Capacity 400 Ton
Maximum vertical stroke mm.565
Approach speed 120 mm/s
Working speed 9 mm/s
Return speed 90 mm/s
Main motor power Kw 30
Installed power Kw 37
Accessories Various tools
CE conformity YES
Cnc type BYSTRONIC MMC BYBEND
Axes Y1 Y2 X1 X2 R1 R2 Z1 Z2 A1 A2 H1 H2 W1 W2 B
Axes A1 and A2 Cutting angle tables
Axes H1 and H2 Vertical movement of cutting angle tables
Axes R1 and R2 Vertical movement of back gauge
Axes W1 and W2 Right and left movement of tables cutting angle
X1 and X2 axes Backward movement of the back gauge
Y1 and Y2 axes Up and down Vertical
Z1 and Z2 axes Dw and Sx movement of the back gauge
B axis YES
Machine weight Kg 48,000
