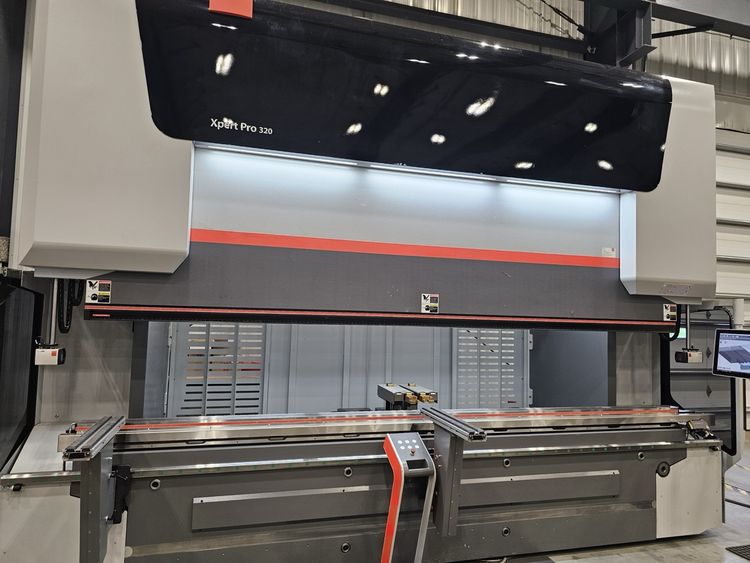

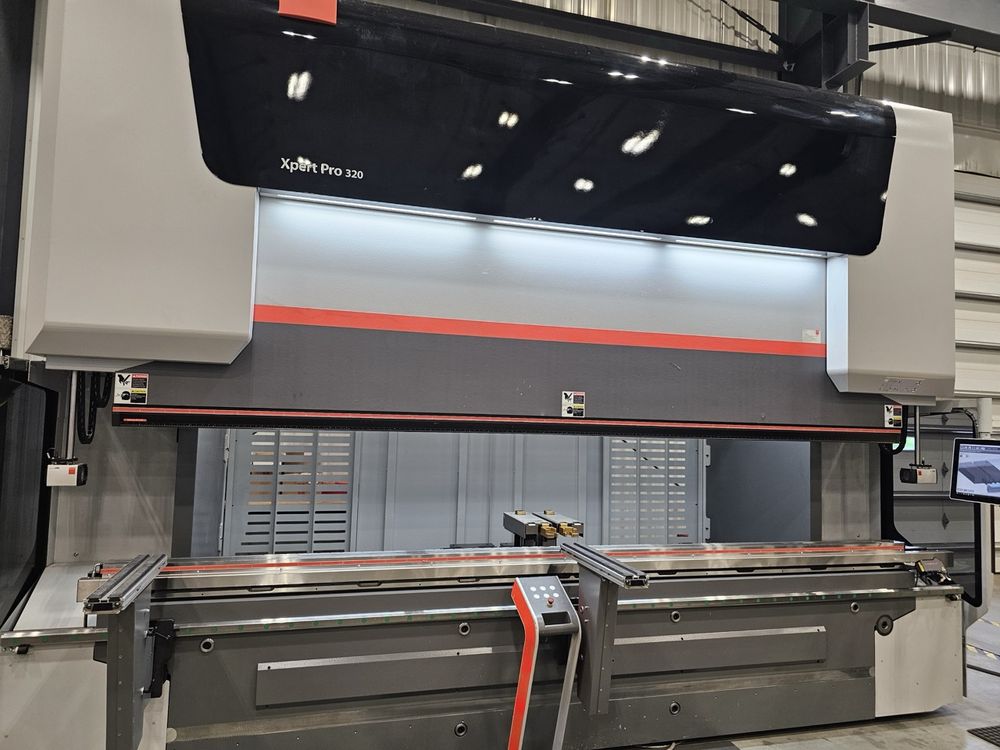

Bystronic Xpert Pro 320/4300 352 Ton

Tonnage 352 Tons
Bending length 169.3 in
Standard stroke 17.7 in
Open height 33.0 in
Distance between side frames 147.7 in
Throat 15.8 in
Table width 2.4 in
Max. back gauge range X-axis 41.4 in
X-axis travel 23.7 in
X-axis speed 1536 in/min
X-axis position accuracy 0.0016 in
R-axis travel 9.9 in
R-axis speed 473 in/min
R-axis position accuracy 0.004 in
Z-axis travel 114 in
Z-axis speed 3544 in/min
Z-axis speed for 6-axis 2834.6 in/min
Z-axis position accuracy 0.004 in
Y-position accuracy 0.00016 in
Weight 60186.2 lbs
Length 207.1 in
Width 78.7 in
Height 147.6 in
Proposed footprint 276 x 177 x 165.4 in
