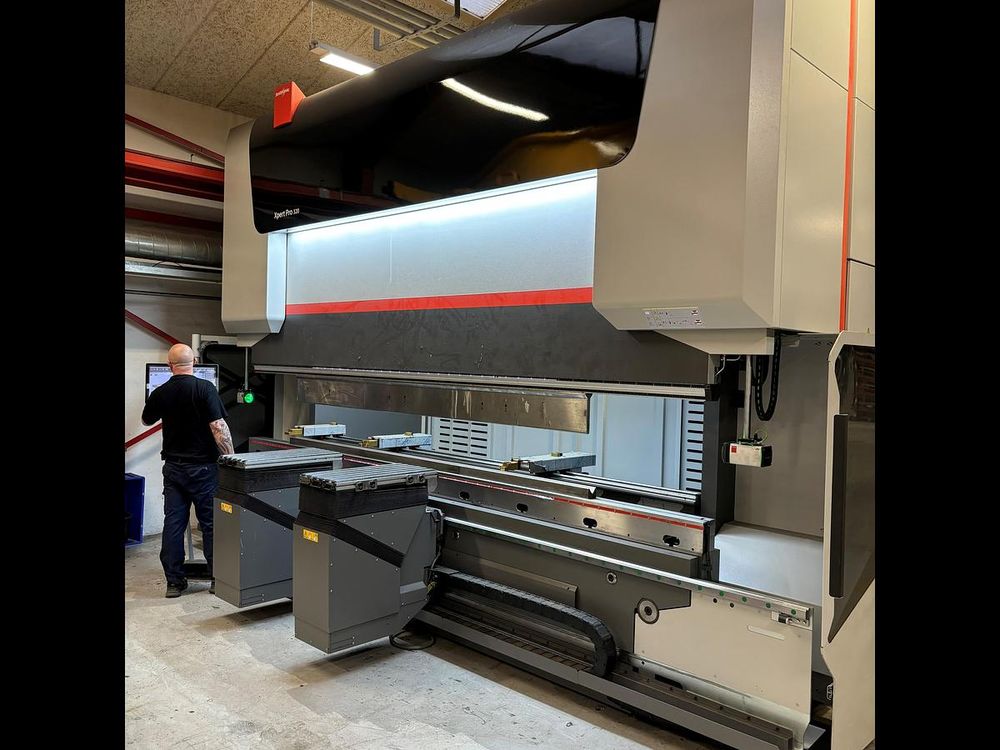

Bystronic XPERT PRO 320/4300 EXTENDED 320 ton

Press force 320 ton
Bending length 4300 mm
Distance between uprights 3750 mm
Gap in frames 400 mm
Daylight 840 mm
Max. travel of back gauge 1050 mm

X-axis movement 600 mm
R-axis movement 250 mm
Z-axis movement 1500 mm

Control: ByVision Bysoft 7, Bending Version 3.15.1, 22” touch screen
Hydraulic dynamic crowning
Automatic tool protection
Measuring of sheet thickness
Hydraulic clamping of upper & lower tools
Eco (XPT Pro T13)
XPT Pro T13 table with automatic height adjustment
Optic bending guiding system
Primary dynamic sheet support
Secondary dynamic sheet support
5-axis back gauge with X, X1, R, Z1 & Z2
Easy fix bending line
Fast bend+ G2 security equipment
Software BySort 7

Operating hours 1895
Weight 27.3 ton
Machine dimensions L/W/H 5260/2000/3750 mm
