Cabe 520 Table diameter: 600 mm
Ref :
2725564-3-MT
Condition :
Used
Manufacturer :
Cabe
Model :
520
Short Description :
Table diameter: 600 mm
Year(s) :
2009
Quantity :
1
Location :
Seller or machines location:
EUROPE (Central and Eastern)
EUROPE (Central and Eastern)

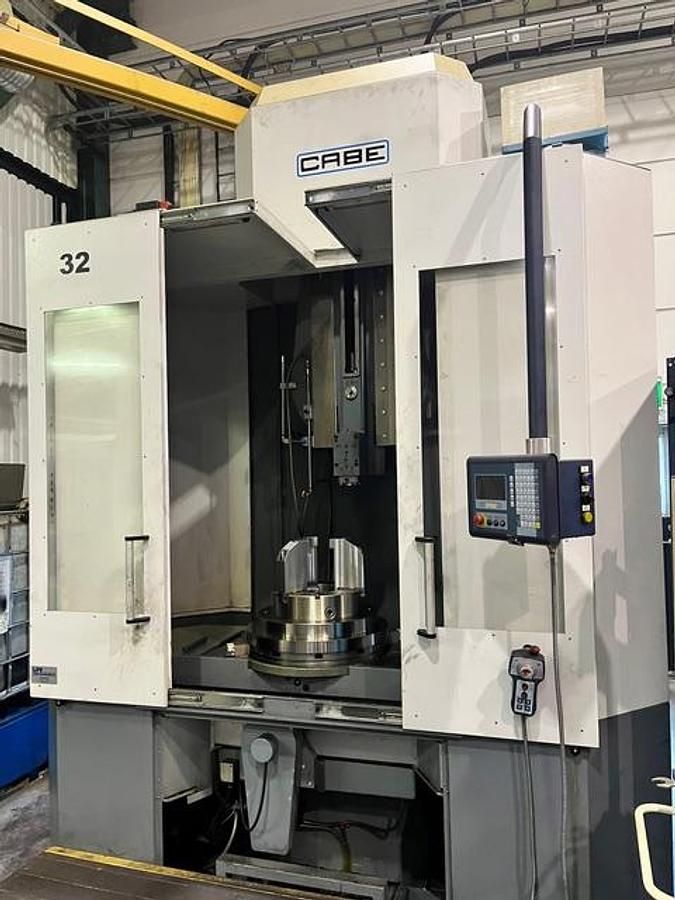

Cabe 520
Year: 2009
Adjustable ram stroke length: 0–520 mm
Distance between tool and column: 550 mm
Distance between head and rotary table: 610 mm
Table travel in Y-axis: 460 mm
Table travel in X-axis: 550 mm
Table hole diameter: 110 mm
Maximum working length: 1600 mm
Adjustable ram stroke speed: 0–55 strokes/min
Maximum rapid traverse speed: 30 mm/s
Table diameter: 600 mm
Maximum table load: 700 kg
Machine dimensions (L × W × H): 2500 × 1956 × 3700 mm
Machine weight: approx. 4000 kg
