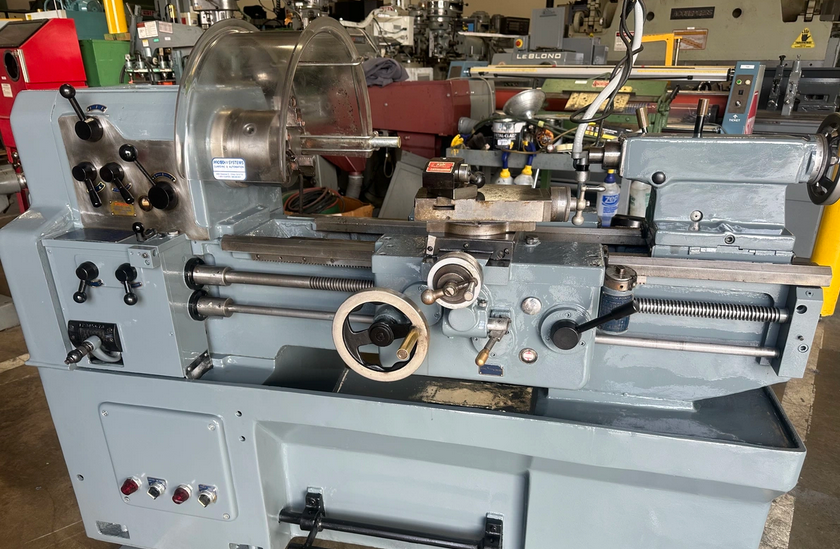

Cadillac Engine Lathe 1800 RPM 14″ X 28″

Ref : 2785252-3-AW

Condition : Used

Manufacturer : Cadillac

Type : Engine Lathe

Spindle Speed : 1800 RPM

Model : 14″ X 28″

Year(s) : -

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

Swing Over Bed: 14″
Distance Between Centers: 28″
Spindle Bore: 1.50″
Spindle Speeds: 55 – 1800 RPM
Number of Speeds: 6
Cross Slide Travel: 8″
Compound Slide Travel: 8.75″
T-Slot Dimensions: 1″ x 1.5″
Inch Thread Range: 4 – 56 TPI
Metric Thread Range: 0.5 – 7 mm
Tailstock Taper: MT4
Tailstock Spindle Diameter: 2″
Tailstock Travel: 5″
Bed Width: 10.875″
Bed Length: 44″
Motor: 10 HP
Voltage: 220/440V 3 Phase
Dimensions: 76″ x 34″ x 52″
3-Jaw Chuck
KDK Tool Holder
Tailstock
Chuck Guard
Coolant
