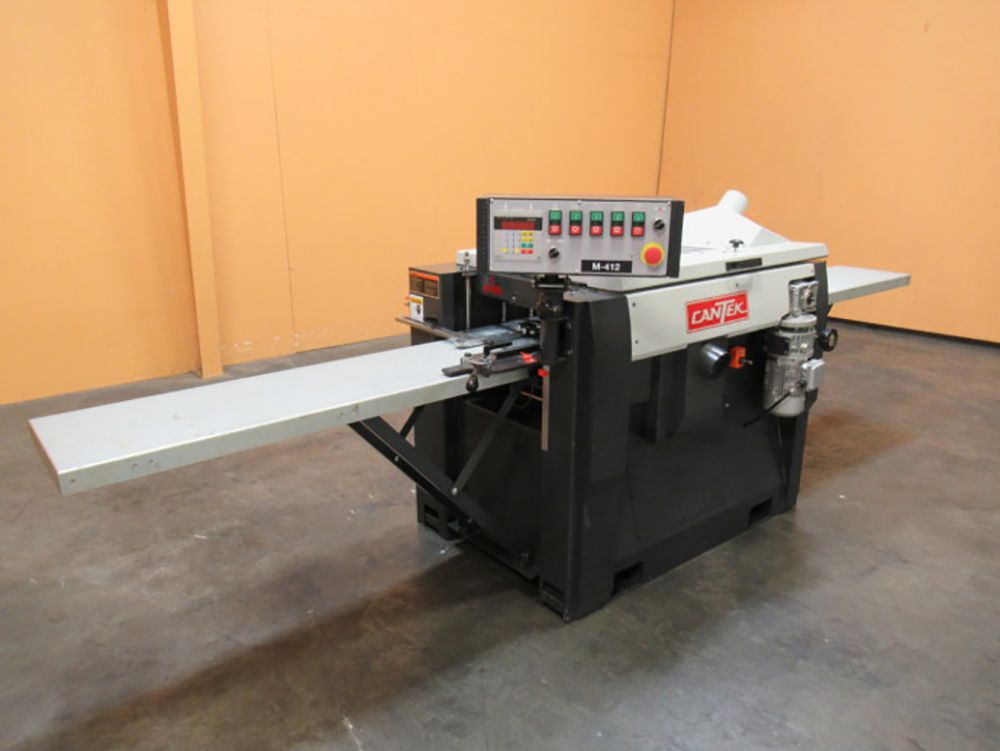

Cantek M412

Used 4-Sided Planer/Moulder
Planing Width: 13” (330MM) Depth: 7/16” – 9” (12 – 230mm)
2-Side Planing/Moulding Width: 13-5/8"” (346mm) Depth: 7/16” – 9” (12 – 230mm)
4-Side Planing/Moulding Width: 0 – 12” (0 – 305mm) Depth: 7/16” – 4” (12 – 100mm)

Top Horizontal Spindle Width: 17-15/16” (455mm)
Max. planing depth: 5/16” (8mm)
Max. moulding depth: 3/4” (19mm)
Speed: 7000 RPM Cutterhead diameter: 2-7/8” (72mm)
Motor: 7-1/2HP (5.5Kw)

Bottom Horizontal Spindle: Width: 13-5/8” (346mm)
Max. planing depth: 1/4” (6mm)
Max. moulding depth: 3/16" (5mm)
Speed: 7000 RPM
Cutterhead diameter: 2-7/8” (72mm)
Motor: 5HP (3.7Kw)

Right & Left Vertical Spindles :
Max. cutting height: 4” (100mm)
Max. cutting depth: 13/16” (21mm)
Spindle diameter: 1-1/4" (31.75mm)
Speed: 7000 RPM
Max. cutterhead diameter: 3-1/2” (90mm)
Motor: 4.1HP (3Kw)

Table Area: 1125 x 685 mm Elevation: 230mm Power Table (Raise): 120w
Dust Hood Outlet 101.6mm (4")
Feed System Speed (Variable): 11-52 ft/min. Motor: 1/2HP (0.375Kw)
Machine Dimensions (LxWxH) 1485 x 1265 x 1216 mm
Packing Dimensions (LxWxH) 1350 x 1140 x 1130 mm
New Weight 635kgs (1400bs)
Gross Weight 730kgs (1610lbs)
