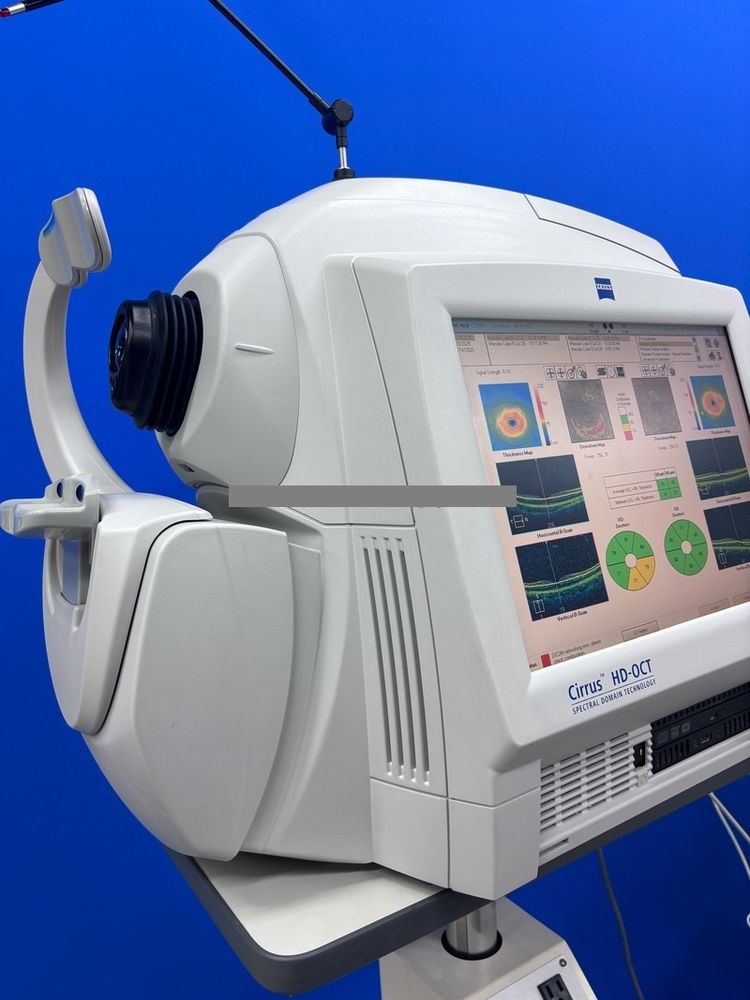

Carl Zeiss Cirrus 4000 HD OCT

The ZEISS Cirrus HD-OCT 4000 (Cirrus HD-OCT or Cirrus) enable examination
of the posterior and anterior of the eye at an extremely fine spatial scale,
without surgical biopsy or even any contact with the eye.
The Cirrus HD-OCT builds on and refines the retinal imaging technology
first introduced with the ZEISS Stratus OCT HD-OCT stands for
"high-definition optical coherence tomography."

Weight: 38kg (83 lbs)
Dimensions: 65L x 44W x 53H (cm)

HD-OCT Imaging
Methodology: Spectral Domain OCT
Optical Source: superluminescent diode (SLD), 840 nm
Optical Power: < 725 μW at the cornea
Scan Speed: 27,000 A-scans per second
A-Scan depth: 2.0 mm (in tissue), 1024 points
Axial resolution: 5 μm (in tissue)
Transverse resolution: 15 μm (in tissue)
*Fundus Imaging
Methodology: Line scanning ophthalmoscope
Live Fundus Image: During alignment and during OCT scan
Optical Source: Superluminescent diode (SLD), 750 nm
Optical Power: < 1.5 mW at the cornea
Field of View: 36 degrees W x 30 degrees H
Frame rate: >20 Hz
Transverse resolution: 25 μm (in tissue)
*Iris Imaging
Methodology: CCD Camera
Resolution: 1280 x 1024
Live iris image: During alignment
Configuration
Licenses enable :
Acquisition Auto Focus, 3D Volume Rendering, Segmentation Layer Editor,
Macular Normative Data, Macular Change Analysis, Macular Reports,
Guided Progression Analysis, ONH and RNFL Analysis, ONH Normative Data,
Asian Normative Data, Ganglion Cell Analysis,

Not Licensed :
Anterior Segment Imaging, Advanced RPE Analysis,
"You will get only what pictured."

Condition
Patient ready
Average Signal Strength : 6~8 /10
