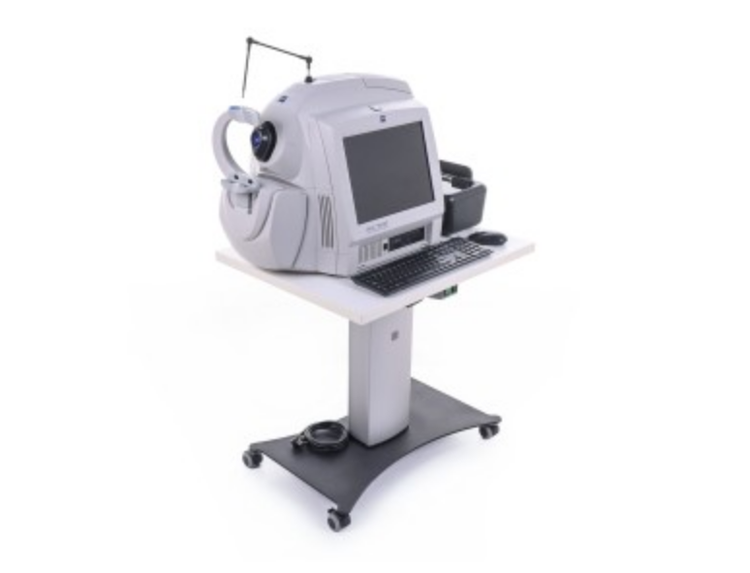

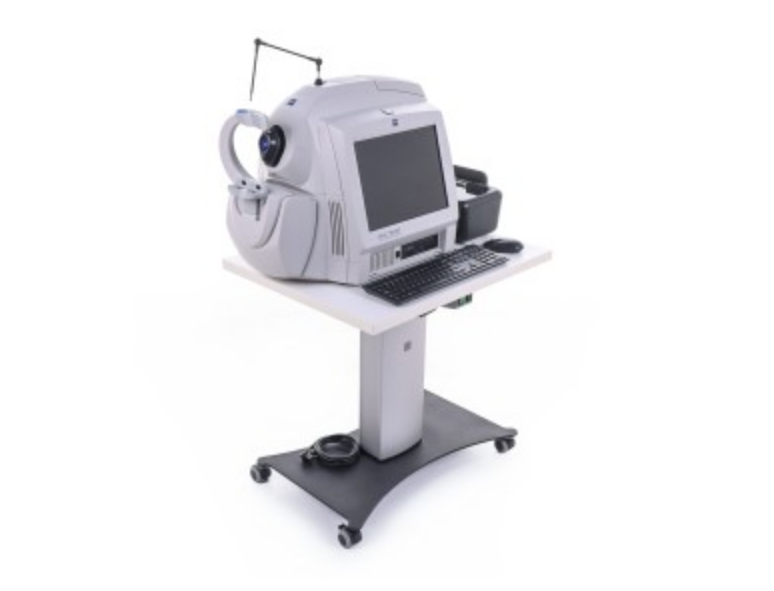

Carl Zeiss Cirrus HD-OCT 4000

Reconditioned (used),
Technical condition: very good,
Visual condition: very good,
Real product photos,
German production,
Power supply: 230 V,
Frequency: 50/60 Hz,

The CARL ZEISS Cirrus HD-OCT 4000 enables examination of the back of
the eye at an extremely fine spatial scale without surgical biopsy or
even contact with the eye. The Cirrus HD-OCT builds on and
refines the retinal imaging technology pioneered by
the ZEISS Stratus OCT. HD-OCT stands for
high-resolution optical coherence tomography,

Using advanced spectral optical coherence tomography imaging
technology, Cirrus HD-OCT collects OCT data approximately 70 times faster
(27,000 vs. 400 A-scans per second) and with improved resolution
(5 μm vs. ~10 μm of axial resolution in tissue) compared to
first-generation OCT technology.
Cirrus acquires entire cubes of OCT image data, composed of
hundreds of linear scans,

Features:
RNFL thickness analysis,
3D volume rendering,
Auto focus,
Segmentation layer editor,
Speckle normative data,
Analysis of macular changes,
Spot reports,
Progress analysis,

Technical data:
HD-OCT imaging:
Methodology: spectral domain OCT,
Optical source: superluminescent diode (SLD),
Optical power 840 nm: < 725 μW at the cornea,
Scanning speed: 27,000 A-scans per second,
Scanning depth A: 2.0 mm (in tissue), 1024 points,
Axial resolution: 5 μm (in tissue),
Lateral resolution: 15 μm (in tissue),
Fundus imaging:
Methodology: Line Scanning Ophthalmoscope,
Fundus image: during alignment and during OCT scanning,
Optical source: superluminescent diode (SLD),
Optical power 750 nm: 20 Hz,
Lateral resolution: 25 μm (in tissue),

Iris imaging method:
CCD camera,
Resolution: 1280 x 1024,
Internal focus adjustment: -20D to +20D (dioptres),

Specification:
High-performance multi-core processor,
Internal memory: > 80,000 scans,
CD-RW, DVD-ROM drive,
Integrated 15-inch color flat panel display,
Menu in: English,
The device is placed on a mobile table with the possibility of
electric height adjustment in the range of 70 – 110 cm,

Included in the set:
HP DESKJET D5560 Color Printer,
2 new printer toners,
Fixation point,
Wired mouse,
Wired keyboard,
User manual in Polish, English (PDF),
Power cord,

Dimensions:
Overall: 72 x 60 x 120/160 cm,
Total weight: 65 KG,
It has a current inspection and is ready to work,
Issued Technical Passport (Service Report) valid for 12 months,

Guarantee:
6 months for the domestic market (Poland),
3 months to the international market,
Possibility of extending the warranty for an additional fee up to
12 months for the domestic and international markets,
