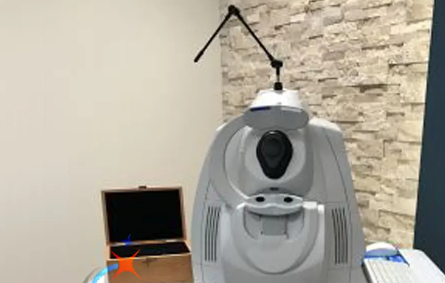

Carl Zeiss Cirrus HD-OCT 400 Ophthalmoscope

This Cirrus 400 has been completely serviced and refurbished by our trained staff of technicians.
This unit comes with the 6.0.2 software, new printer, power table, and all peripherals.

The world’s best-selling spectral domain OCT system is now offered in Model 400.
What’s unique about Model 400? Focused on the essential core OCT functionality,
Model 400 is designed with the smaller budget in mind. Live OCT Fundus™ technology1 provides
the fundus image using the OCT scanner only, rather than an additional line scanning ophthalmoscope (LSO).

The 400 offers glaucoma and retina analyses and is capable of anterior segment imaging just like the 4000.
The dense data cubes are interchangeable between model 400 and model 4000 systems.
Cirrus HD-OCT models also share the same modern integrated design, ease of use, and small footprint.

Cirrus HD-OCT 400 Specification
Fundus Imaging
Scanning system Live OCT Fundus™ Technology
Field of view 36 x 22 degrees

OCT Imaging
Methodology Spectral domain
Scan speed 27,000 A-scans / sec
A-scan depth 2.0 mm (in tissue)
Axial resolution 5 μm (in tissue)
Transverse resolution 15 μm (in tissue)

Internal Computer
Processor Intel® Pentium® Core 2 Duo
Memory 2GB
Hard drive/internal storage 750GB

Physical
Size (L x W H) 66.0 x 43.2 w 53.3 cm (26 x 17 x 21 in.)
Table footprint (L x W) 99.1 x 55.9 cm (39 x 22 in.)

Software
Macular Thickness Analysis and Macular Change Analysis
RNFL Thickness Analysis and Guided Progression Analysis (GPA™)
Normative database – RNFL
Normative database – Macula
Advanced Visualization™ and 3D Display
Compatible with Cirrus Review Software (sold separately)
Anterior Segment Imaging (license may be sold separately)
Connectivity via ZEISS DICOM Gateway (license sold separately)
