Carl Zeiss Cirrus HD-OCT 5000

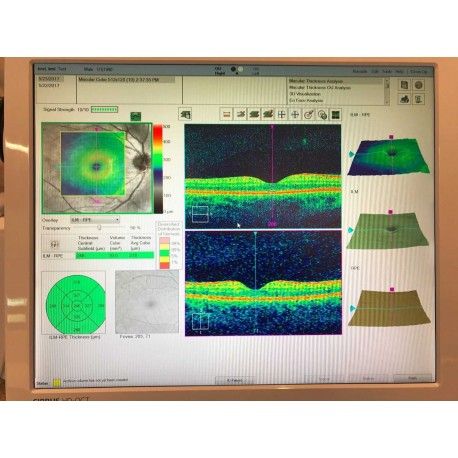

CARL ZEISS Cirrus HD-OCT 5000 provide highest resolution visualization capabilities
and track retinal pigment epithelial integrity using Advanced RPE Analysis and
assess glaucomatous loss with Ganglion Cell Analysis

Cirrus HD-OCT 5000 come with features an active eye-tracking mechanism
that able to trace and compensate eye motion in real time and
FastTrac retinal tracking to reduces eye motion artifacts without sacrificing patient

Cirrus OCT come with version 9.5 software can acquire 68,000 scans per second with fundus photos
This Cirrus HD-OCT 5000 completely refurbished by Zeiss trained technician

Specifications
OCT Imaging
Methodology: Spectral domain OCT
Optical source: Superluminescent diode (SLD), 840 nm
Scan speed: 27K- 68K A-scans per second
A-scan: 2.0 mm (in tissue), 1024
Axial resolution: 5 μm (in tissue)
Transverse resolution: 15 μm (in tissue)

Fundus Imaging
Methodology: Line scanning ophthalmoscope (LSO)
Live fundus image: During alignment and during OCT scan
Optical source: Superluminescent diode (SLD), 750 nm
Field of view: 36 degrees W x 30 degrees H
Frame rate: > 20 Hz
Transverse resolution: 25 μm (in tissue)

Iris Imaging
Methodology: CCD camera
Resolution: 1280 x 1024

Include
Cirrus HD-OCT 5000 Unit
New Printer
Mouse
Keyboard
Warranty Table
Table
all peripherals.
