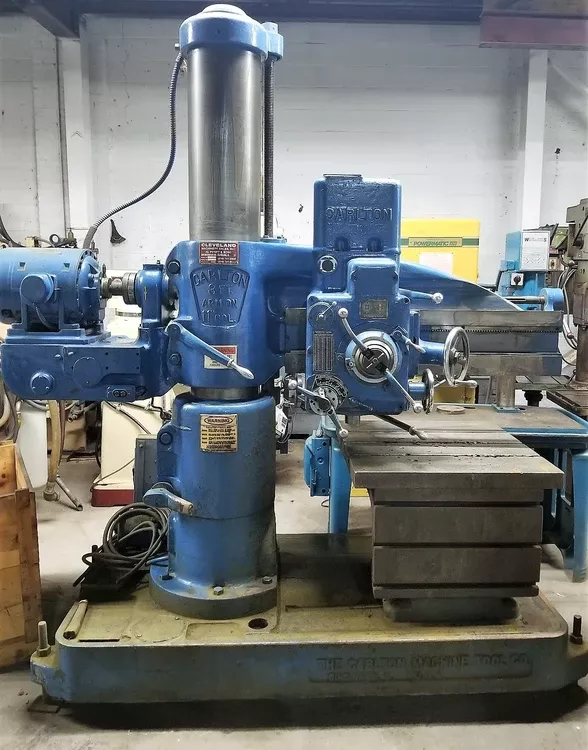

Carlton 3' ARM X 11" COLUMN 1,500 RPM

CARLTON 3' ARM X 11" COLUMN

Arm length 3'
Column diameter 11"
Power 3 hp
Spindle speed 1,500 RPM
12 spindle speeds: 80 - 1500 RPM
Spindle taper #4 Morse Taper
Quill diameter 2.5"
Quill travel 10"
Feed rates: 0.06 - 0.08 - 0.011 - 0.015 - 0.020 - 0.025
Manual arm clamping
Manual head clamping
Power elevation
Box table size 20" x 24" x 20"
Motor 3 hp
Electrical 440V / 3 phase
Overall dimensions 90" L x 42" F-B x 99" H
Approximate weight 6,000 lbs
Can be seen under power
