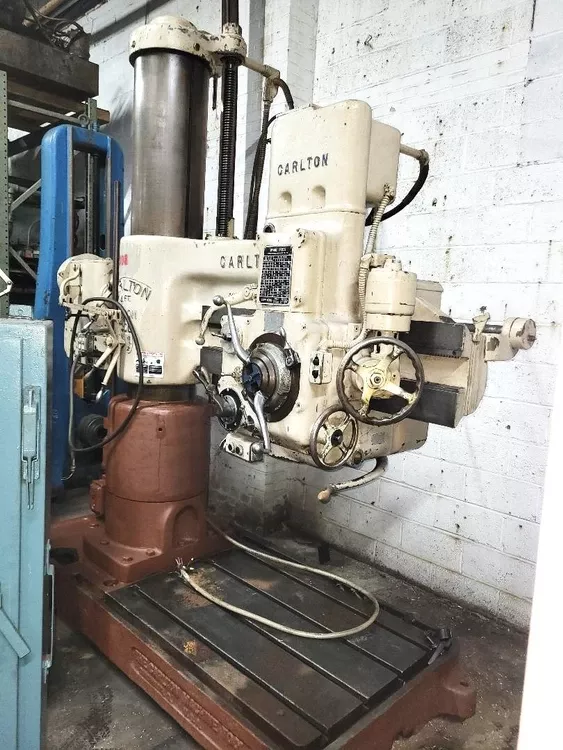

Carlton 4'ARM X 15"COLUMN 1500 RPM

CARLTON 4'ARM X 15"COLUMN

Arm length 4'
Column diameter 15"
Power 10 hp
Spindle speed 1,500 RPM
36 spindle speeds: 15 - 1500 RPM
18 feed rates: 4 - 125 IPM
4 thread settings: 8, 11.5, 14, 18 TPI
Power clamping
Power elevation (approx. 36" vertical travel)
Power traverse left and right on head
Spindle taper #5 Morse Taper
Coolant system
Motor 10 hp
Approx. 64" max under spindle
Overall dimensions 123" L x 50" F-B x 9'10" H
Approximate weight 17,500 lbs
