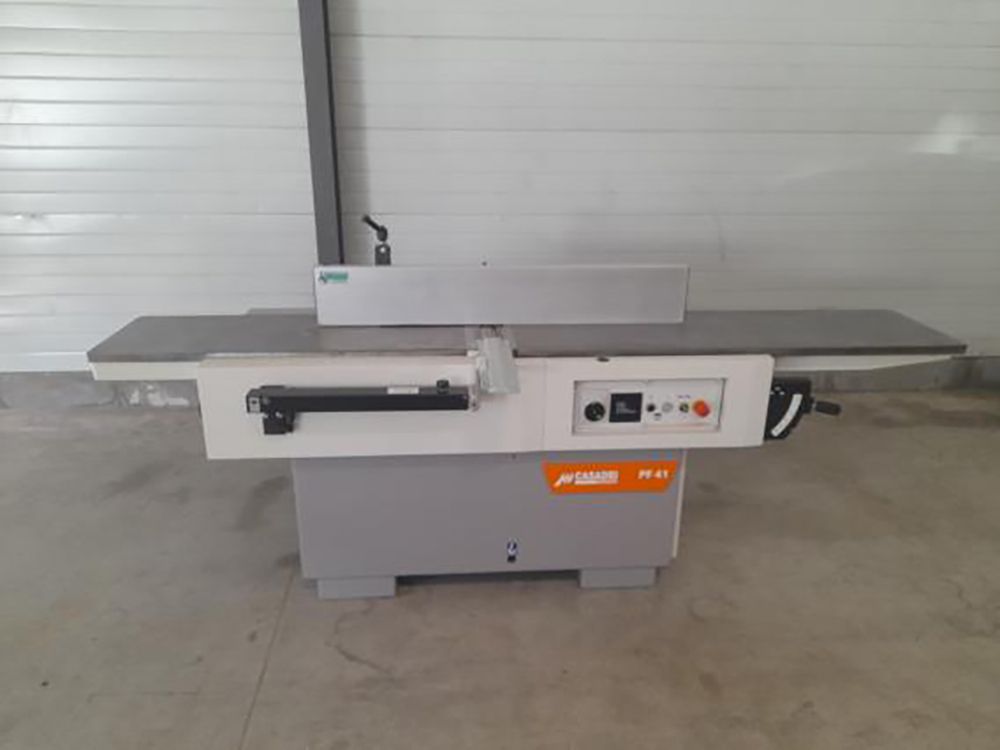

Casadei PF 41

Planer
Used Machine
STANDARD EQUIPMENT :
Ripened iron machining tables
Clear tables with parallelogram travel on links
Anodized Guide
Embarrassed shaft with device for recording knives
Protection to the clearing tree
General switch lockable
Emergency stop button
Thermal magneto protection
Transformer for auxiliary circuit 110 V
Direct start of the main engine

TECHNICAL CHARACTERISTICS :
Useful machining width : 410 mm
Total length of tables : 2600 mm
Dimensions of the loosening guide: 1200 x 190 mm
Inclination of the loosening guide: from 90° to 45°
Speed of rotation of the shaft : 5000 rpm
Shaft diameter / number of knives : 120 mm / 4 knives
Maximum material withdrawal : 8 mm
Diameter of the suction hood: 120 mm
Main engine power (S6) :
5 kW (7 HP) to 50 Hz
6 kW (8 HP) to 60 Hz
