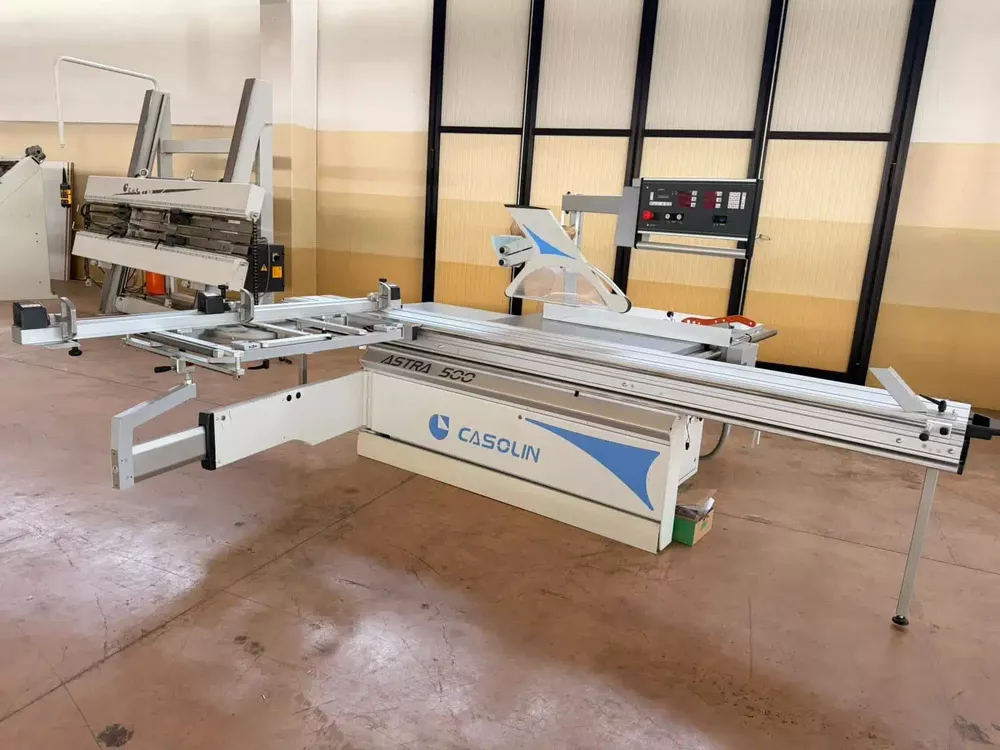

Casolin Astra 500

Sliding table saw
Carriage length: 2600-3200-3800-4300-5000 mm.
Carriage width: 400 mm.
Saw blade diameter: 300-500 mm.
Optional: 550 mm diameter without scoring blade.
Blade shaft: 30 mm diameter.
3 speeds: 3000-4200-5000 rpm.
Tiltable 0-45.5°
Saw cutting height: 175 mm with 500 mm diameter blade (200 mm with optional 550 mm diameter blade).
Standard saw motor: 4 kW (5.5 HP).
Optional: 5.5-7.5-9.2-11 kW, 3 speeds.

Optional 5.5-7.5 kW with inverter 2500-5000 rpm
The scoring blade can also be used with the 400 mm diameter blade mounted.
The 400 mm diameter blade can be lowered below the table level. Scoring unit (Optional)
Scoring blade 8500 rpm
Scoring blade 120 mm diameter
Shaft 20-15 mm diameter, designed for adjustable blades
Electrically adjustable scoring blade height and alignment, 0.75 kW (1 HP) motor
