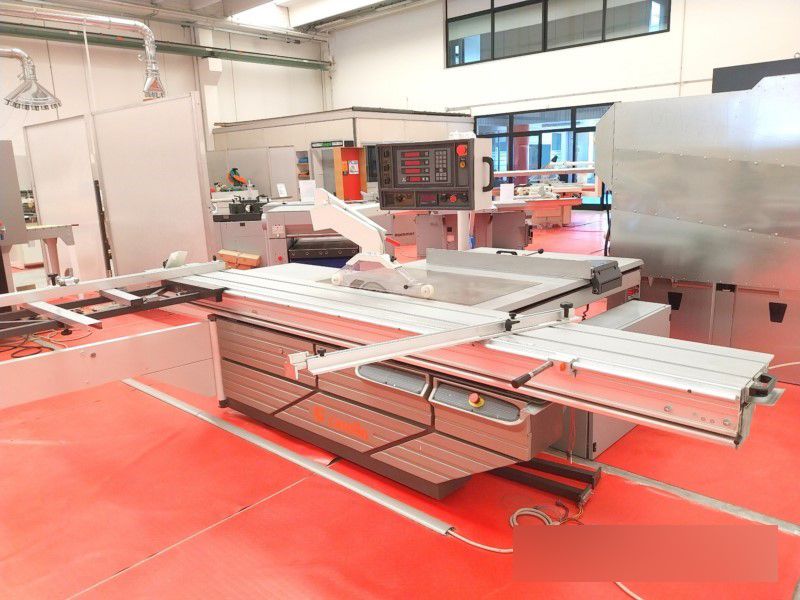

Casolin ASTRA DIGIT/E

Electronic controlled 3-axis panel saw with scoring unit for woodworking shops, furniture,
custom furnishings, panels, doors, window frames, plastics, composite materials, and various - CE Standard

Technical specifications:
Aluminum carriage length 3800 mm
Blade diameter 400 mm Hole 30
Cutting height mm 130
Cutting height at 45° mm 90
Rotation speed 3200/4200/5000 rpm
Blade motor 5,5 Hp
Scoring unit with electropneumatic lifting - Blade diameter 125 mm - Hole 20 - Motor 0,75 Hp
3 CONTROLLED AXiS: Blade lifting - Blade tilt - Parallel fence
Adjustable fence for inclined cut
Parallelogram blade guard
Extension for fixed table
Suction port diameters: 1 Ø 120 mm - 1 Ø 80 mm
Overall dimensions of assembled machine mm 3800 x 3700 x 1600 h
Overall dimensions for transport mm 3800 x 2300 x 1600 h
Weight kg 1500
