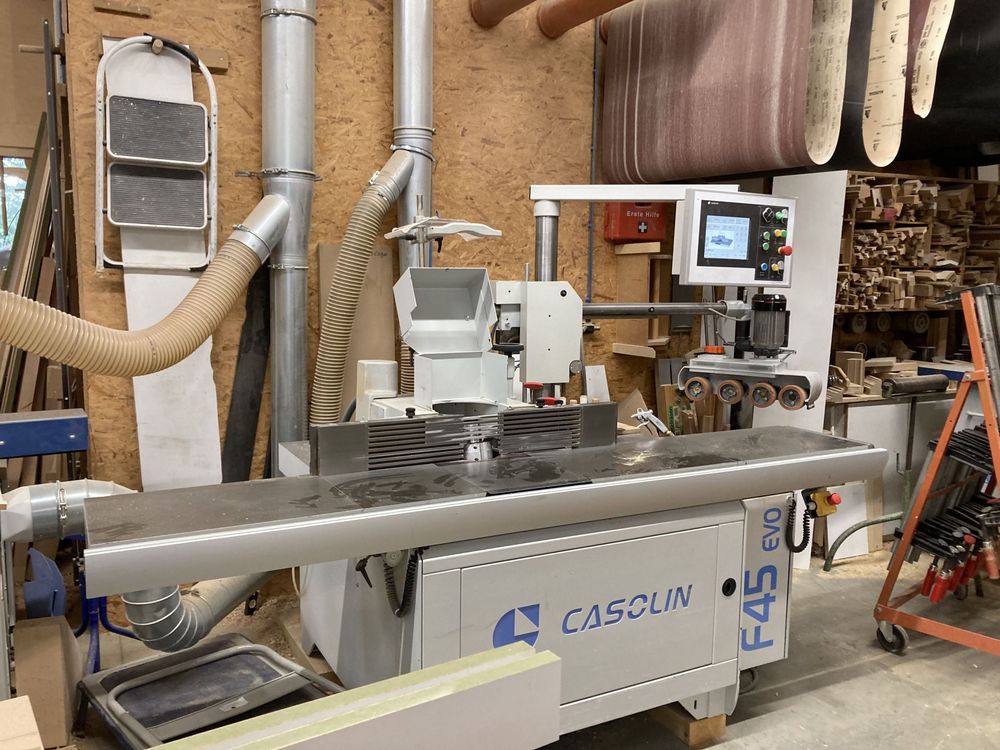

Casolin F 45 EVO Milling Machine

Table dimensions: 2700 x 900 mm
HSK 63 F-type spindle taper
2 spindles for HSK 63 F-type spindle taper (30 + 40 mm)
Spindle tilt: -45° to +45°
Spindle working length: 180 mm
Right and left rotation
4-roller feed with motorized height/width adjustment and pneumatic Clamping
7.5 kW brake motor with electronic inverter

CNC adjustment for:
-Spindle tilt adjustment
-Spindle height adjustment
-Complete fence
-Front section of the fence
-Spindle travel from the table
-Electronic stepless speed control 1,000 - 10,000 rpm
-Aigner milling fence with aluminum jaws
-Touchscreen with graphics function - Windows operating system
-Camera for importing tool and profile images
-Fence fully swivels away
-Automatic star-delta start
-Central lubrication
Weight approx. 1360 kg
