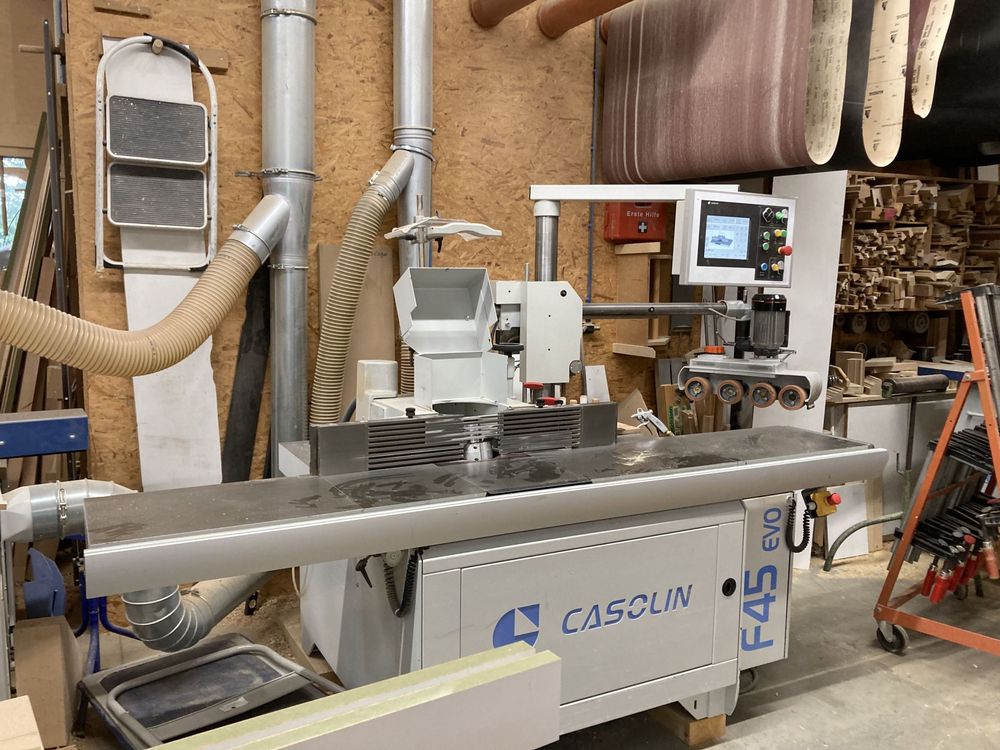

Casolin F45 EVO

Table dimensions: 2700 x 900 mm
HSK 63 F chuck
2x spindles for HSK 63 F chuck (30 + 40 mm)
Spindle inclination: -45° to +45°
Usable spindle length: 180 mm
Right-left rotation
4-roller feed with motorized height/width adjustment and pneumatic drive. Clamping
7.5 kW brake motor with electronic inverter

CNC adjustment for:
-Spindle tilt adjustment
-Spindle height adjustment
-Complete stop
-Front part of the stop
-Travel from the table in front of the spindle
-Electronically stepless speed control 1,000 - 10,000 rpm
-Aigner milling stop with aluminum jaws
-Touchscreen with graphics function - Windows Operating System
-Camera for importing tool and profile images
-Stop can be completely swung out of the way
-Automatic star-delta start-up
-Central lubrication
Weight approx. 1,360 kg
