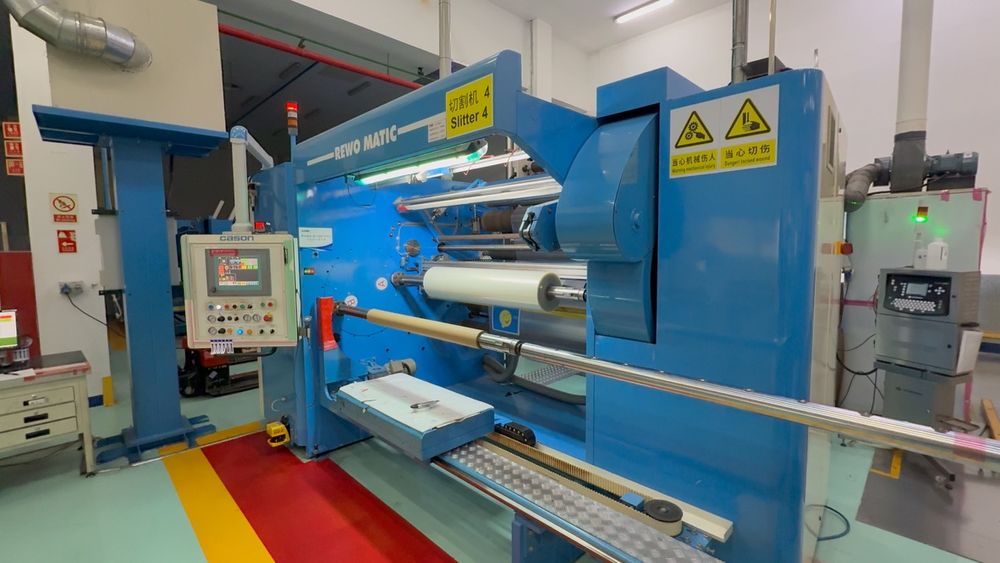

Cason REWO MATIC-SGPO

SLITTER REWINDER
1.04 Typology Twin camshaft
1.05 Maximum mother coil diameter 1200 mm
1.06 Maximum width of mother coil 1650 mm
1.07 Minimum width of finished coils 200 mm
1.08 Maximum diameter of finished coils 800 mm
1.09 Mechanical speed (m/min) 400 m / min
1.10 Installed electrical power 54 KW
1.13 Cutting group Circular knives
1.14 Maximum – minimum compressed air pressure Max 6-8 bar
1.15 Material Plastic films, paper and laminates
1.16 Web guides Yes
1.17 Unloading coils With unloading platform
1.18 Availability Immediate
1.19 More information Shaftless unwinding system (without tree)
