Cazeneuve Engine Lathe 1600 RPM HB 575 x EP 2000 mm
Ref :
2724707-3-MT
Condition :
Used
Manufacturer :
Cazeneuve
Type :
Engine Lathe
Spindle Speed :
1600 RPM
Model :
HB 575 x EP 2000 mm
Year(s) :
575
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

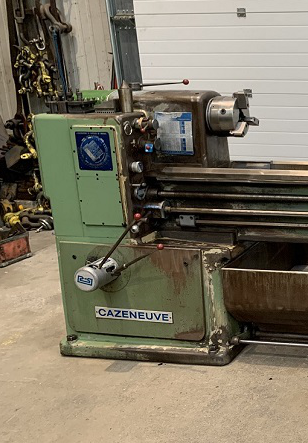

CAZENEUVE HB 575 x EP 2000 mm
Parallel Lathe
Between centers 2000 mm
Max diameter on bed 575 mm
Max diameter over saddle 300 mm
Spindle diameter 51 mm
Rotation 20 to 1600 RPM
Turret TRIPAN 411
Chuck 3-jaws 200 mm
Spindle motor 15 CV
Threadings Metric
Threadings Whitworth
Tailstock CM5
Lubricant tank
Lubricant pump
3 TRIPAN tool holders
Voltage 380 V
Length 3500 mm
Width with tank 1500 mm
Total height 1400 mm
Weight approx 3 T
