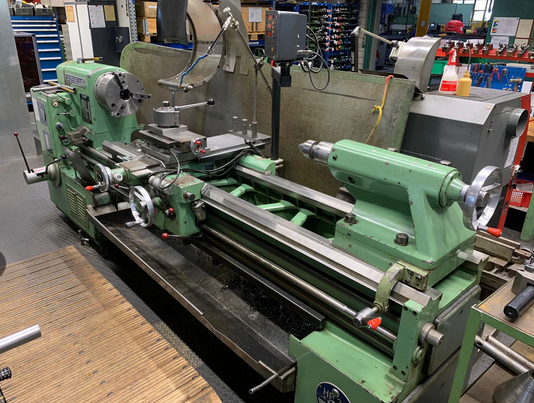

Cazeneuve Engine Lathe 1600 rpm HB 725

Ref : 2795306-3-MT

Condition : Used

Manufacturer : Cazeneuve

Type : Engine Lathe

Spindle Speed : 1600 rpm

Model : HB 725

Year(s) : -

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Centre height: 315 mm
Distance between centres: 1500 mm
Swing over cross-slide: 670 / 400 mm
Swing over bed: 725 mm
Swing in gap: 750 mm
Gap length: 235 mm
Spindle hole: 81 mm
Spindle speeds: 14–1600 rpm
Feed steps: 73
Longitudinal feed: 0.018–11 mm/rev
Frontal feed: 0.009–6 mm/rev
Spindle motor power: 13 kW
Spindle stroke: 235 mm
Tailstock taper: 6 CM
Voltage: 3x400 V, 50 Hz
Machine weight: 2900 kg
Dimensions (L×W×H): 3140 × 1270 × 1355 mm

Digital readout (2-axis)
3-jaw chuck
Set of hard jaws
Set of soft jaws
Fixed steady rest
Tool holder with accessories
