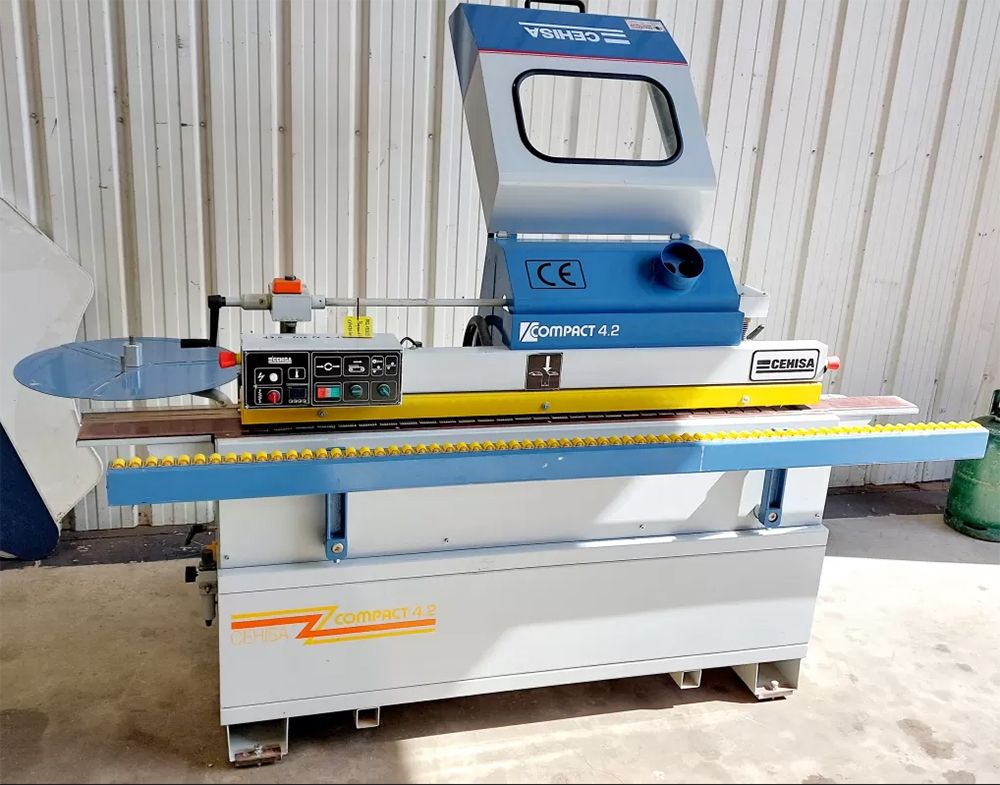

Cehisa COMPACT 4.2

EDGE BANDER
MAKING CAPACITIES:
- Panel height (thickness): 8 to 50 mm
- Minimum panel length: 125 mm
- Minimum panel width: 80 mm
- Edgebanding thickness: up to 2 mm
- Panel overhang (workpiece projection): 35 mm
- Feed speed: 8.5 m/min
- Distance between workpieces: 115 cm

MACHINE COMPONENTS:
- Unwinding tray: Ø600 mm
- Worktable with front extension (length x width): 2300 x 300 to 1000 mm
Worktable height: 89 cm
- Chain conveyor belt
- Power unit 200°C EVA interchangeable tray gluing machine
Pneumatic pre-cutting cutter
2-roller pressing unit, one roller motorized
- 12,000 rpm end-cutting unit
- 12,000 rpm top/bottom flush trimming unit with pad copying
Digital counters for adjustments (Siko type)

OTHER FEATURES:
- 400V power supply. Three-phase + neutral + ground, 50Hz
- Installed power: 2.7 kW, 5 A
- Drive motor: 0.75/0.9 kW
- Saw motor: 0.2 kW
- Flush trimming (milling) motors: 2 x 0.27 kW
- Pneumatic supply: 6-7 bar, dry air
- Dust extraction port: Ø120 mm for hose
- CE marking, lockable disconnect switch, emergency stop buttons
Dimensions (W x D x H): 2.65 x 1.20 x 1.95 m
Weight: 600 kg
