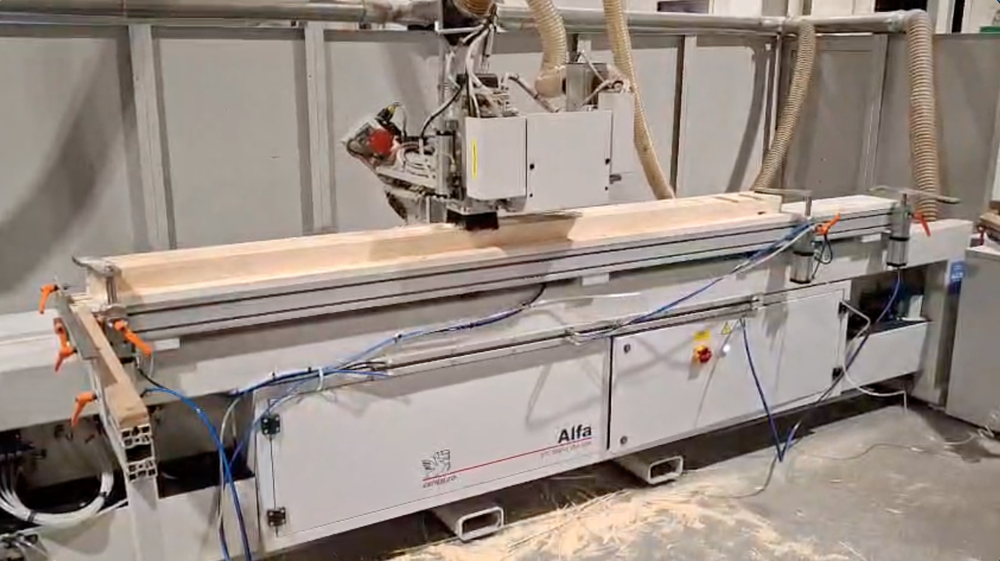

Centauro ALFA 3-axis

CNC milling center for doors and frames
X-Y-Z axis travel (milling): 2800 - 180 - 150 mm
1 ER32 collet for Ø 16-15 mm cutter
Maximum X-Y-Z axis speed: 35 - 6 - 6 m/min
Maximum worktable dimensions: 3000 x 618 mm
2 retractable pneumatic rear stops
3 pneumatic clamps
2 side stops
2 front workpiece support extensions
3-axis controlled electrospindle
Milling electrospindle power: 3.3 kW (5 HP)
Programmable electrospindle speed: 0 - 18,000 rpm
3 extraction ports (Ø 100 mm)
Electronic programmer with "TOP 12" touchscreen
Prepared for Remote assistance
Operating pressure: 6 bar
Rear safety guard with photoelectric cells
1 x 16 mm milling cutter
Equipment and options
5.6 kW (7.5 HP) milling motor
Quick manual tool change with HSK40 and two ER32 tool holders
X-axis travel: 3400 mm (instead of 2900/2800 mm)
Front table for dovetail and tenon milling
Additional HSK40 tool holder
Additional 2.2 kW (3 HP) milling unit with ER25 collet and 3 mm diameter cutter.
