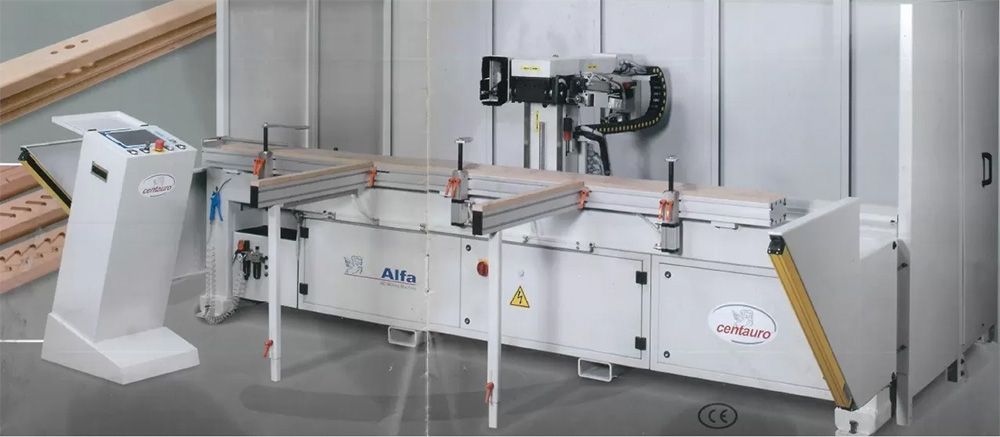

Centauro ALFA

CNC MILLING AND ROUTER MACHINE
MACHINING CAPACITIES :
• Milling & routing unit
- X-axis travel: 2800 mm
- Travel on the Y-axis: 400 mm
- Z-axis travel: 150 mm
- Maximum movement speeds:
X-axis: 35 m/min
Y-axis: 6 m/min
along the Z-axis: 6 m/min
- Spindle speed: 0 to 18000 rpm

MACHINE COMPONENTS:
- Extra rigid welded steel frame
- Suction chute along the length
- HSK 40 pin
- Suction hood and blower on spindle
- Main table (LxD): x 190 mm
Rear guide with retractable stops
A 25x190 mm sacrificial plate made of MDF (medium-density fiberboard) is recommended.
Height from the ground (working height): mm
- 3 pneumatic rear pressure plates
- 2 retractable rear stops
- 2 side stops
- 2 front extensions
- Manual air blower
- 10" Touchscreen Control Panel
- Updated program
(with the latest version available for this model)

MACHINE SPECIFICATIONS :
- General power supply: 380V, three-phase, 50 Hz
- Installed power: 8.2 kW (11 hp) IN Max 37.5 A
- Increased motor power for the spindle: 5.6 kW
- X-axis motor: 1.2 kW
- Y-axis motor: 0.6 kW
- Z-axis motor: 0.8 kW
Suction: top: Ø 80 mm, bottom: Ø 100 mm
- Recommended flow rate: m3/h
- CE marking, Lockable contactor, Disconnect switch, Emergency stop buttons
- Safety zone with photoelectric barrier

Congestion:
• In working order (LxWxH): 4050 x 2690 x 1610 mm
• For transport (LxWxH):
The machine 3500/1800/1600mm
1 pallet 2100/1100/800mm
Total weight: 1300 kg
