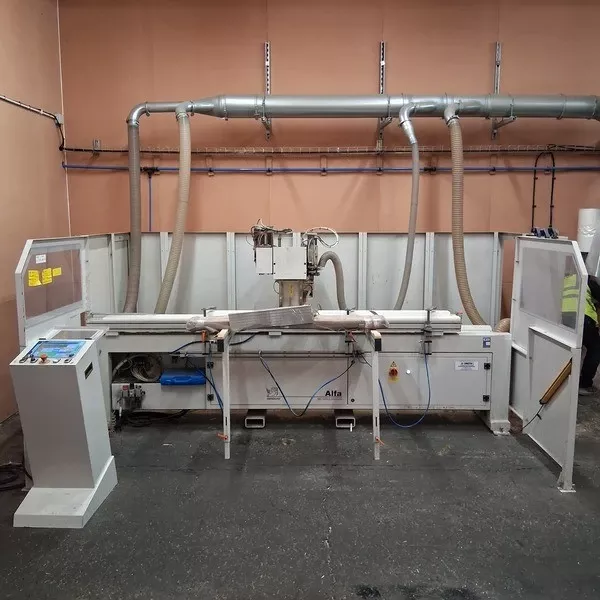

Centauro Alfa NC Slotting, Milling & Drilling Machine
Ref :
2783635-15-MT
Condition :
Used
Manufacturer :
Centauro
Model :
Alfa NC
Short Description :
Slotting, Milling & Drilling Machine
Year(s) :
2019
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Specification:
Axis capacity – X 2800mm – Y180 mm – Z 150mm
X axis positioning speed 35 m/min
Y and Z axis positioning speed 6m/min
Maximum work table dimensions 3000mm x 618mm
Main router head 3.3kw – rpm 0 to 18,000 – ER32 collet
2 x front pneumatic retractable positioning stops
3 x front support legs for doors
Elco TOP 12 colour graphic touch screen controller
CE side / rear safety guards with front light beam
C/W optional extra's :
Additional milling unit with square for rectangular recess lock / hinge slots / screw pilot holes
