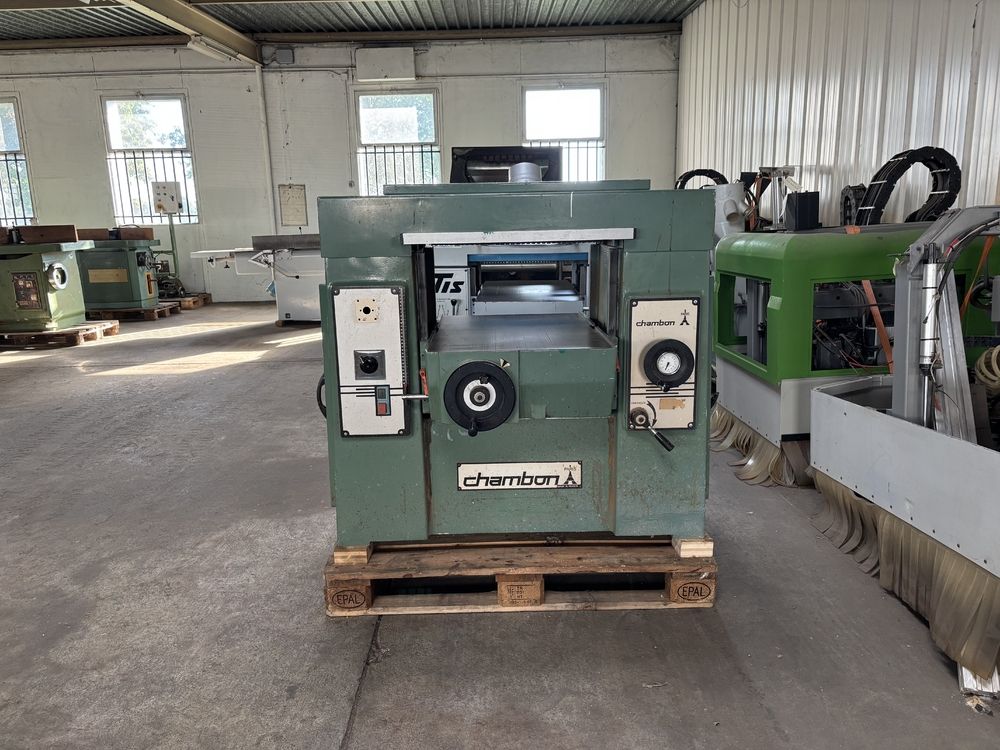

Chambon TR230

Thickness planer
Feeding by 3 rollers, diameter 70 mm
Variable speed from 8 to 19 m/min
Shaft diameter 120 mm, 4 irons
Working width : 520 mm
Table length : 800 mm
Working height : 3 to 280 mm
Quick manual up/down or fine adjustments
Table height display on slide
5.5 HP motor
Shaft rotation speed : 4500 RPM
Ideal machine for carpentry, cabinetmaking, precious woods and thin materials

Power and Motors:
Voltage: 400 V
Pluging: Three-phased
Power: 6,5 Kw
Motor: 4 CV

Overall dimensions:
Lenght: 1140 mm
Width: 940 mm
Height: 1080 mm
Weight: 670 Kg
