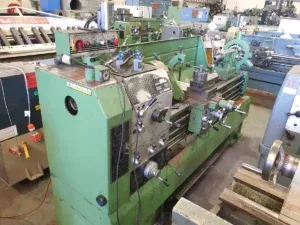

Charles Engine Lathe 2500 rpm 500 x 1500 Centre Lathe

Ref : 2746415-3-GO

Condition : Used

Manufacturer : Charles

Type : Engine Lathe

Spindle Speed : 2500 rpm

Model : 500 x 1500 Centre Lathe

Year(s) : -

Quantity : 1

Location : Seller or machines location:
OCEANIA

Swing over bed: 500 mm
Swing over saddle: 300 mm
Swing in gap: approx. 600 mm
Distance between centres: 1500 mm
Spindle bore: 52 mm
Spindle mount: Camlock D1-6
Spindle speeds: 30 to 2500 rpm
Motor: 7.5 HP / 5.5 kW
Power requirements: 3 phase 415 V
Overall dimensions: 2630 x 1100 x 1500 mm
Approx. weight: 2.5 tonne
Metric machine with metric dials
Foot operated brake

Self centering 3 jaw chuck
4 jaw independent chuck
Quick change tool post
Face plate
Coolant system
