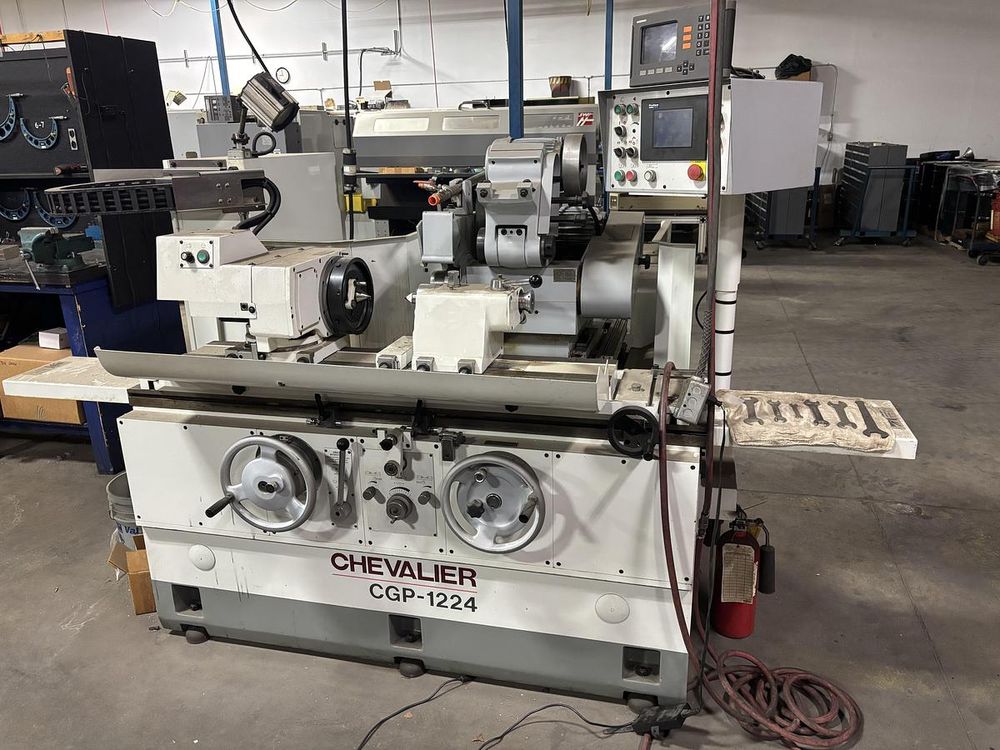

Chevalier CGP-1224

DISTANCE BETWEEN CENTERS 23.6"
SWIVEL OVER TABLE 12.6"
MAX LOAD BETWEEN CENTERS 330 LBS
MAX EXTERNAL GRINDING 11.8"
WHEELHEAD SWIVEL ANGLE +/-30°
WHEELHEAD MANUAL DISTANCE 6.3"
WHEELHEAD AUTO RAPID TRAVERSE 1.57"
SIZE OF GRINDING WHEEL 14" X 2" X 5"
WHEEL SPEEDS 1,940 RPM
WORKHEAD SWIVEL ANGLE 120° (+90°, -30°)
WORKHEAD SPINDLE CENTER MT5
APPROX MACHINE WEIGHT 5,800 LBS

Mitsubishi PLC control with touchscreen operation
30,000 RPM internal grinding attachment
2-axis Heidenhain digital readout
Assorted grinding wheels
Coolant tank with magnetic separator
