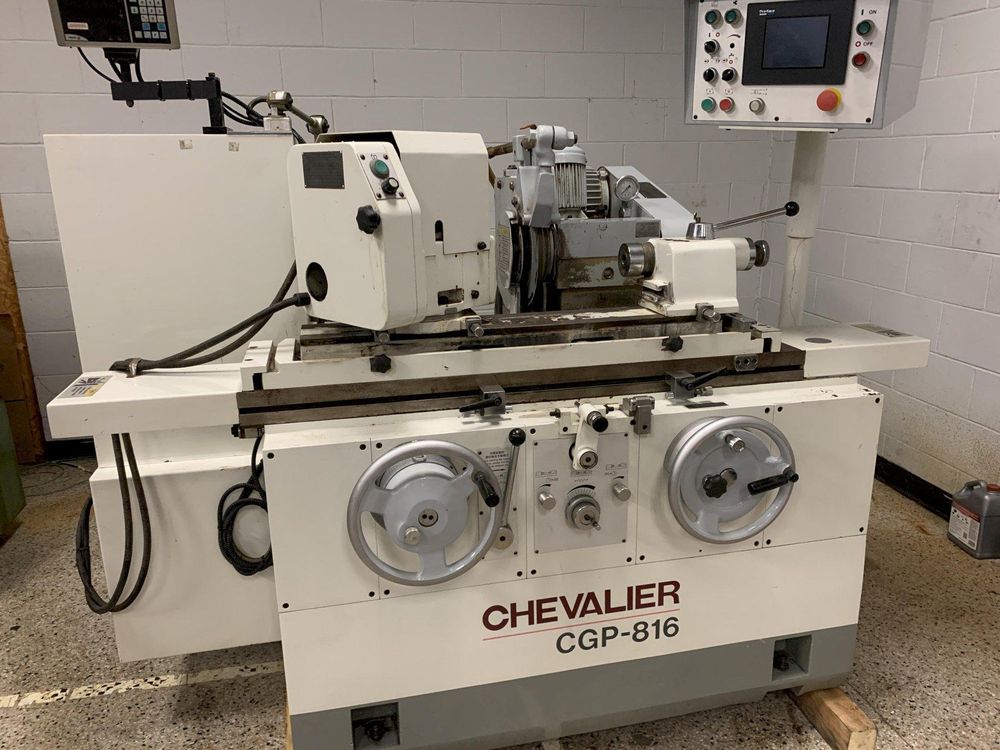

Chevalier CGP-816

Max Swing Over Bed: 8 in
Max Grinding Length: 16 in
Table Traverse Length: 0.12 in
Table Speed: 2 – 160 ipm
Table Handwheel per Revolution: 0.787 in
Table Swivel Angle: 12° CCW / 3° CW
Grinding Wheel Size: 12" x 1-1/2" x 5"
Grinding Wheel Speed: 2495 rpm
Max Infeed Travel: 5.35 in
Rapid Advance/Retract Travel: 1 in
Max Grinding Wheel Travel: 6.32 in
Max Swivel: ±30°
Infeed Handwheel per Revolution: 0.0394 in
Infeed Handwheel per Graduation: 0.0002 in
Tailstock Quill Travel: 0.787 in
Tailstock Center: MT3
Wheel Head Motor: 3 HP
Workhead Motor: 0.5 HP
Workhead Speeds: 16 – 450 rpm
Hydraulic Motor: 1 HP
Coolant Motor: 0.125 HP
Coolant Separator Motor: 0.04 HP
Machine Dimensions: 93" x 65" x 68"
Machine Weight: 4400 lbs

Equipped With:
PLC Control
Fagor 2-Axis DRO with Y-axis scale
Hydrostatic Spindle Bearings
AC Servo Ball Screw Drive
5" 3-Jaw Chuck
Variable Speed Workhead
Wheel Dresser
Steady Rest
Tailstock
Spare Wheel Flange
Coolant Pump & Tank
Splash Guards
Tool Box
Leveling Pads
Manual
