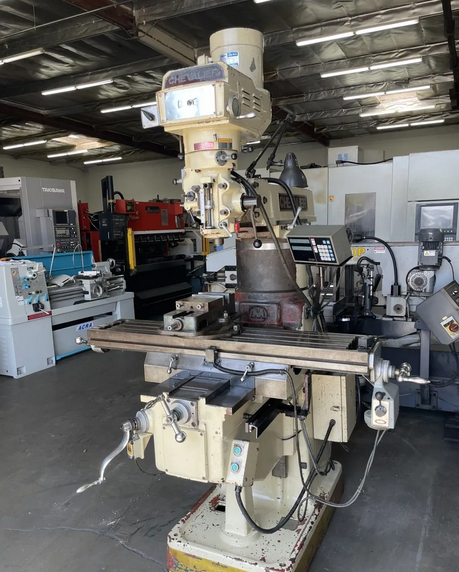

Chevalier FM-3KVH Vertical 4500 RPM

Ref : 2798968-3-AW

Condition : Used

Manufacturer : Chevalier

Model : FM-3KVH

Type : Vertical

Spindle Speed : 4500 RPM

Year(s) : -

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

X-axis travel: 32.75 in
Y-axis travel: 16.125 in
Knee travel: 15.5 in
Quill travel: 5 in
Table size: 10 × 50 in
Spindle speed: 60–4500 RPM
Spindle motor: 3 HP
Spindle taper: R-8
Spindle nose to table: 0–17.25 in
Servo X-axis power feed
Digital readout
One-shot lubrication system
Variable speed head
6 in mill vise
8 in riser block
Machine weight: 3100 lb
Machine dimensions: 104 × 79 × 85 in
