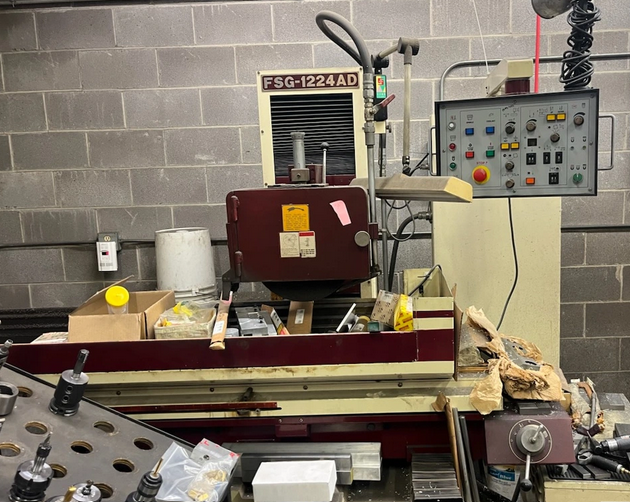

Chevalier FSG-1224AD

Table size: 12" x 24"
Maximum grinding length: 24"
Maximum grinding width: 12"
Maximum distance from spindle center to table surface: 24-3/4"

Suitable magnetic chuck size: 11-3/4" x 23-5/8"
Longitudinal travel manual: 25-1/2"
Longitudinal travel hydraulic: 24-3/4"
Table speed: 0.16 - 82 FPM

Crossfeed travel manual: 14-1/8"
Rapid travel speed: 12.5 FPM
Automatic intermittent feed: 1/8" - 2"
Micro feed per graduation: 0.000050"
Micro feed per revolution: 0.005"

Wheelhead automatic infeed: 0.000050" - 0.002"
Wheelhead rapid travel: 8 IPM
Wheelhead micro feed: 0.000050" / 0.0001"
Handwheel feed per graduation: 0.0005"
Handwheel feed per revolution: 0.05"

Spindle speed: 1750 RPM
Spindle motor power: 5 HP

Grinding wheel size: 14" x 2" x 5"
Voltage: 230 V

Machine dimensions: 97" x 68" x 87"
Machine weight: 4,520 lbs
