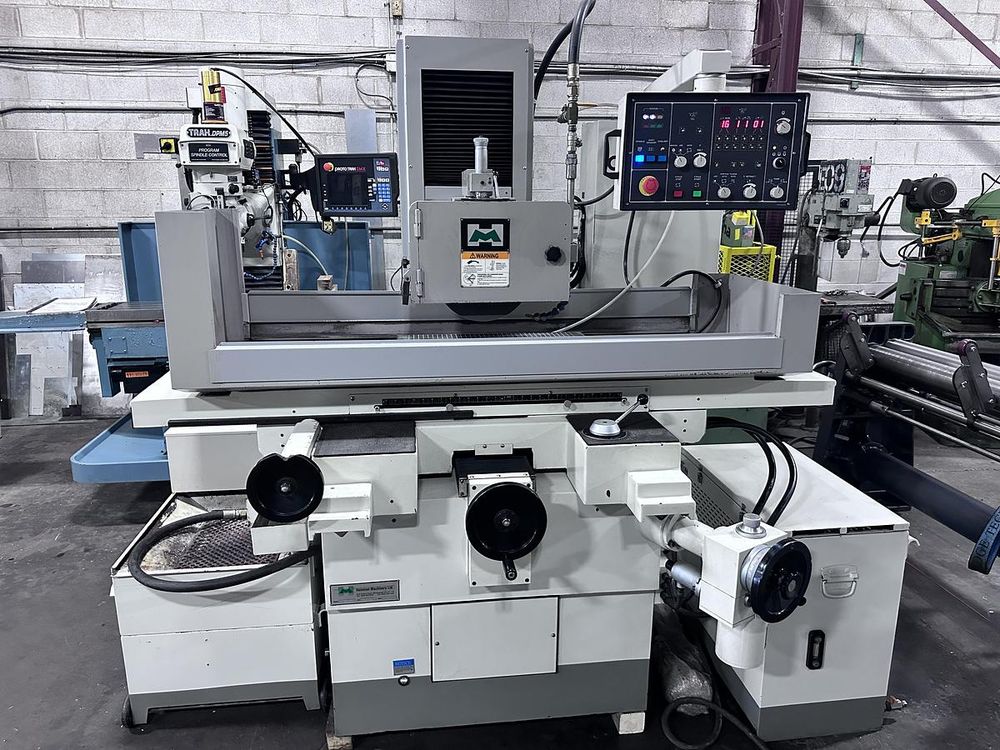

Chevalier FSG-3A1224

CHEVALIER FSG-3A1224
2017

11.75" x 25.38" table working surface
12" x 24" max chuck size
27.5" manual / 25.63" automatic max table movement
19.75" max distance from wheel to table
14" x 2" x 5" bore max wheel size
1,750 RPM wheel speed
16–82 FPM variable auto longitudinal feed rate
8 IPM rapid wheelhead feed rate
0.0005"–0.002" auto wheelhead downfeed increments
0.05" per revolution hand wheelhead downfeed increment
5 HP spindle drive
Electro-magnetic chuck
Incremental downfeed
Automatic longitudinal feed
Automatic cross feed
Coolant system with paper filtration
Hydraulic system
