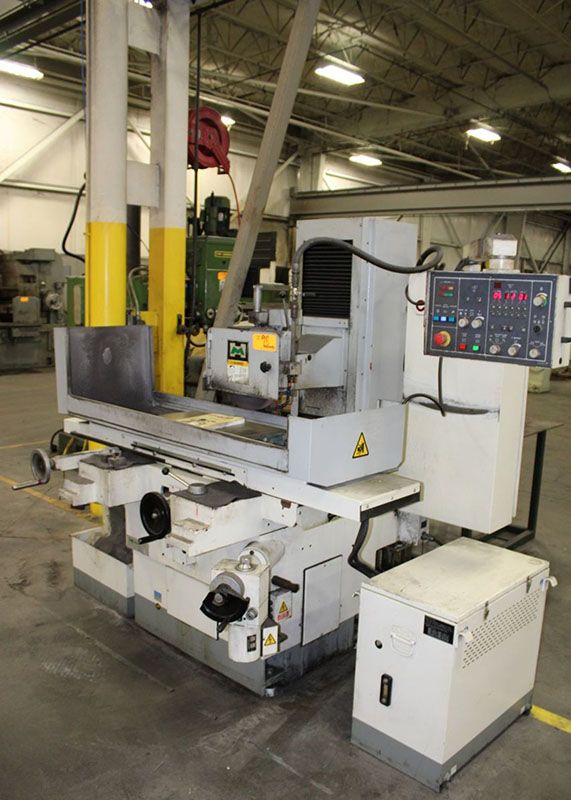

Chevalier FSG-3A1224

CHEVALIER FSG-3A1224
2016

Maximum grinding capacity 12" x 24"
Maximum longitudinal table travel 27.5"
Maximum crossfeed travel 14.5"
Distance spindle center to table 24.75"
Variable hydraulic table speed 16–82 FPM
Automatic crossfeed increment 0.04"–0.6"
Crossfeed handwheel per graduation 0.001"
Crossfeed handwheel per revolution 0.2"
Automatic incremental downfeed 0.0001"–0.002"
Downfeed handwheel per graduation 0.0005"
Downfeed handwheel per revolution 0.001"
Rapid traverse rate 13 IPM
Spindle motor 5 HP
Standard grinding wheel size 14" x 1–2" x 5"
Machine weight 4,630 lbs
Machine dimensions 105" L-R x 71.25" D x 75" H
Programmable microprocessor auto-cycle control
Automatic incremental downfeed plunge and surface
Adjustable sparkout cycle 0–9 times
Power rapid wheelhead positioning
Automatic wheelhead retraction at cycle completion
Hydraulic table traverse
Power crossfeed
Turcite-B laminated and hand-scraped slideways
Fine vertical axis feed 0.0001" graduation
12" x 24" Chevalier standard cross pole electromagnetic chuck
Variable hold neutrofier control
Coolant system
Over-the-wheel dresser with micrometer diamond adjustment
External hydraulic system
Auto lube system
Super-precision direct drive spindle
Electrics 3/60/230–460 volts
Wired for 3/60/230 volts
