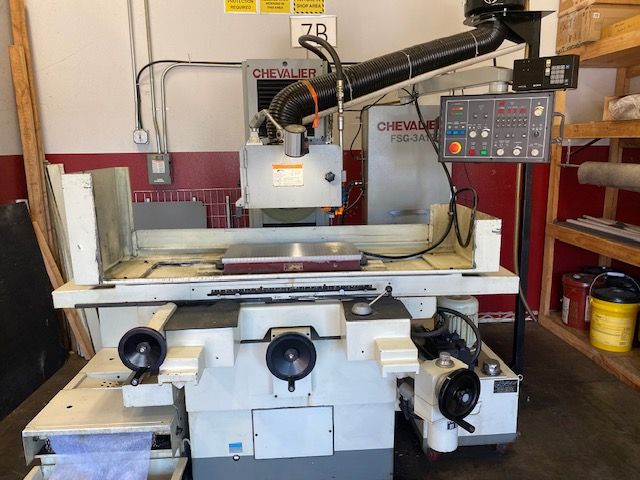

Chevalier FSG 3A-1224

Table Size 12" x 24"
Max. Grinding Length 24"
Max. Grinding Width 12"
Max. Distance from Table Surface to Spindle Centerline 24.8"
Standard Magnetic Chuck Size 11 3/4" x 23 5/8"
Table Speed, Variable 16–82 FPM
Crosswise Rapid Travel Approx. 56 IPM
Auto Increment 0.04–0.47"
Crosswise Max. Auto Travel 14 1/8"
Crosswise Max. Manual Travel 14 1/2"
Spindle Drive Speed 60Hz/1,750 RPM, 50Hz/1,450 RPM
Spindle Drive Power Rating 5 HP
Hydraulic Drive Power Rating 2 HP
Cross Feed Drive Power Rating 0.05 HP
Elevating Drive Power Rating 0.25 HP
Grinding Wheel Diameter 14"
Grinding Wheel Width 2"
Grinding Wheel Bore 5"
Sony DRO
Paper Filtration System
