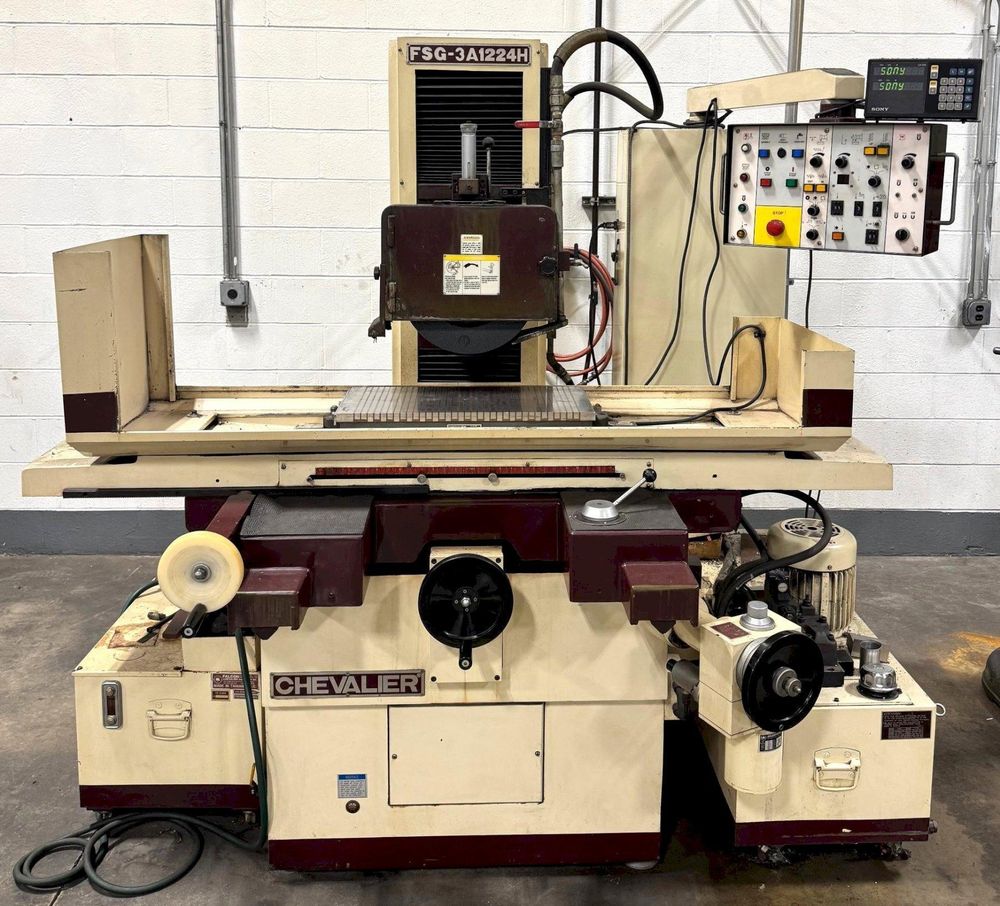

Chevalier FSG-3A1224H

Table size: 12" x 24"
Maximum grinding length: 24"
Maximum grinding width: 12"
Maximum distance from table surface to spindle centerline: 24-3/8"
Table speed, infinitely variable: 16–82 FPM
Longitudinal travel, hydraulic: 25-5/8"
Maximum table travel, manual: 27-1/2"
Cross transverse rapid travel: 12 FPM
Automatic transverse increment: 1/8"–2"
Maximum automatic transverse travel: 12"
Maximum manual transverse travel: 13-3/4"
Handwheel per revolution: 0.25"
Handwheel per graduation: 0.0025"
Wheelhead automatic infeed: 0.00005"–0.002"
Wheelhead handwheel per revolution: 0.05"
Wheelhead handwheel per graduation: 0.0005"
Grinding wheel speed: 1750 RPM
Grinding wheel size: 14" x 2" x 5" bore
Approximate weight: 5000 lbs

Equipment
5 HP spindle motor
12" x 24" electromagnetic chuck with variable chuck control
Incremental down feed
Sony digital readout
Coolant system
Dresser
