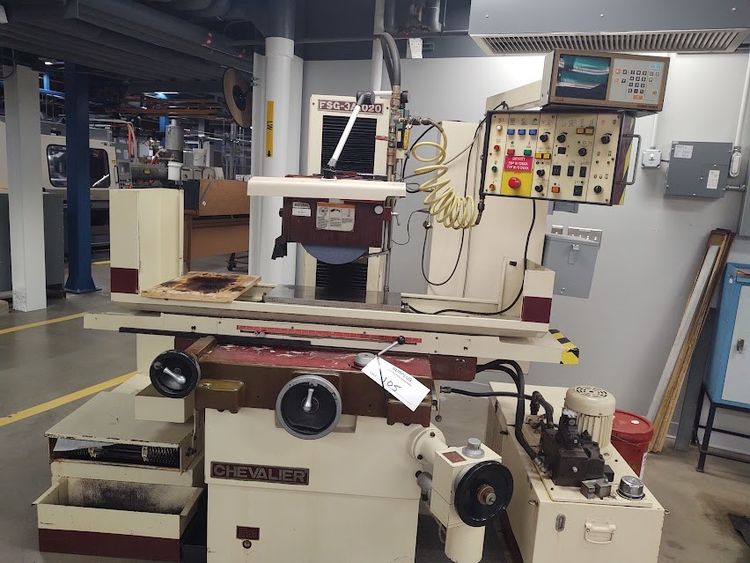

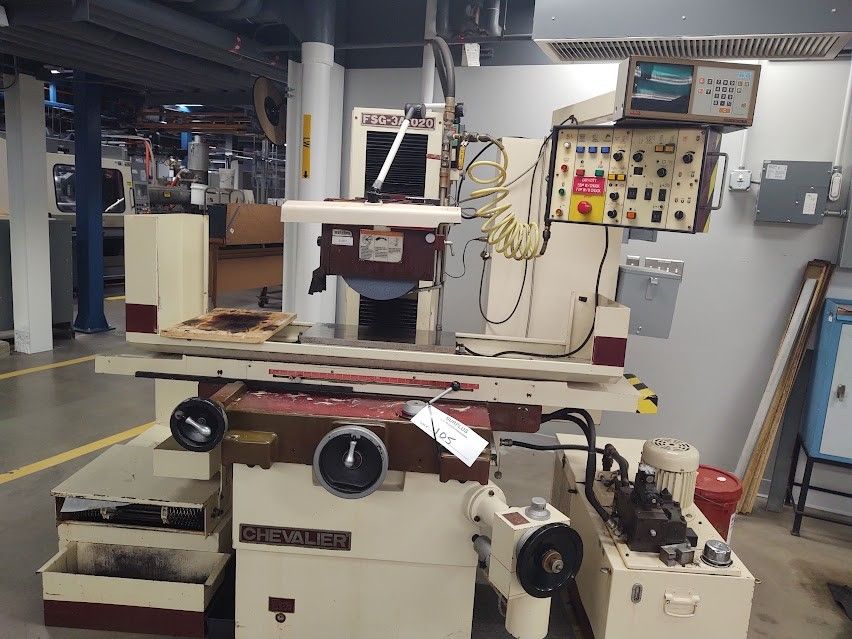

Chevalier FSG-3A1020

Nominal grinding capacity – 10" x 20"
Max. longitudinal table travel, hydraulic – 22-7/8"
Max. longitudinal table travel, manual – 24-3/8"
Max. crossfeed travel, automatic – 11-7/16"
Max. crossfeed travel, manual – 11-3/4"
Distance from spindle center to table – 21-1/2"
Variable table speed, hydraulic – 16' to 82' FPM
Automatic crossfeed increment – 0.02" to 0.4"
Power rapid traverse (cross) – 48" IPM
Crossfeed handwheel per graduation – 0.001"
Crossfeed handwheel per revolution – 0.02"
Automatic incremental downfeed – 0.0001" to 0.002"
Auto downfeed dial per graduation – 0.0005"
Auto downfeed dial per revolution – 0.1"
Microfeed – 0.0001"
Rapid traverse rate – 13" IPM
Spindle motor – 3 HP
Standard grinding wheel – 12" dia. x 1-1/4" x 3"B
Weight – 3306 lbs
Dimensions – 85" x 48" x 65"H

Fully programmable microprocessor auto-cycle control with digital display
Automatic incremental downfeed (plunge & surface)
Sparkout cycle with automatic wheelhead retraction at completion of grind cycle
Power rapid wheelhead positioning
Hydraulic table traverse
Electronic cross & vertical feeds
Micro-downfeed (.0001" grad.)
12" grinding wheel

Equipped with:
2-axis digital readout display
10" x 20" electromagnetic chuck with variable hold control
Coolant system with paper filtration
Work light
External hydraulic system
Auto lube system
12" grinding wheel
5 HP super-precision direct drive spindle
