Chevalier FSG-3A1224
AMERICA North (USA-Canada-Mexico)

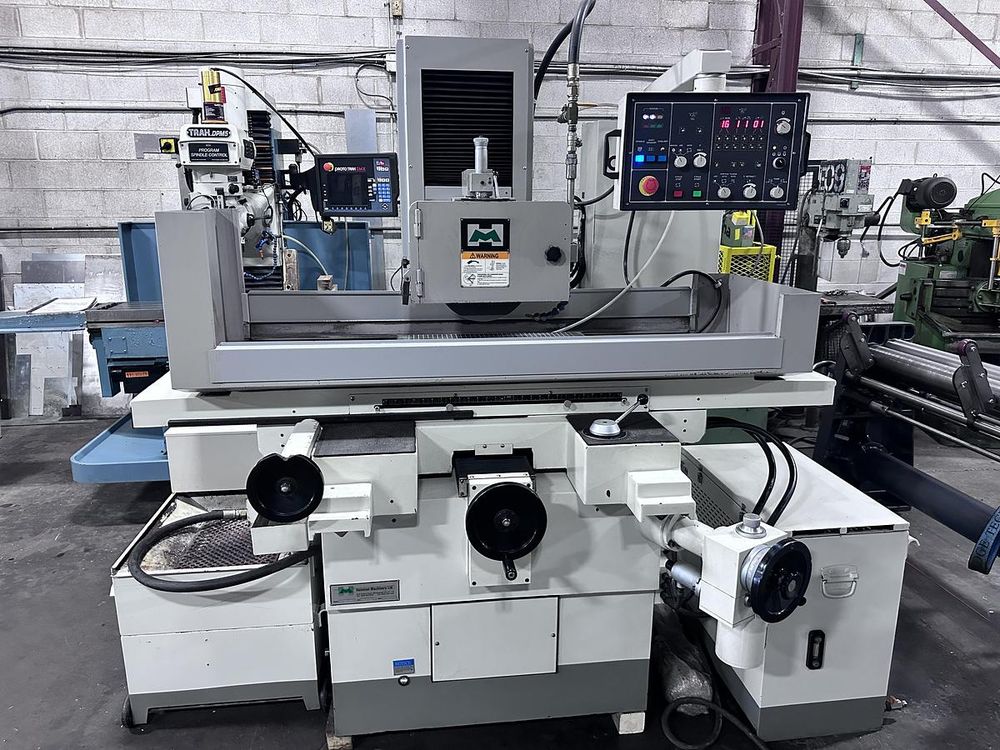

CHEVALIER FSG-3A1224
2017
Table working surface 11.75" x 25.375"
Maximum chuck size 12" x 24"
Maximum manual table movement 27.5"
Maximum automatic table movement 25.625"
Maximum distance from wheel to table 19.75"
Maximum wheel size 14" x 2" x 5" bore
Wheel speed 1750 RPM
Automatic longitudinal feed rate 16 to 82 FPM variable
Rapid wheelhead feed rate 8 IPM
Automatic wheelhead downfeed increments 0.0005" to 0.002"
Hand wheelhead downfeed increments 0.05" per revolution
Spindle drive 5 HP
Electromagnetic chuck
Incremental downfeed
Automatic longitudinal feed
Automatic cross feed
Coolant system with paper filtration
Hydraulic system
