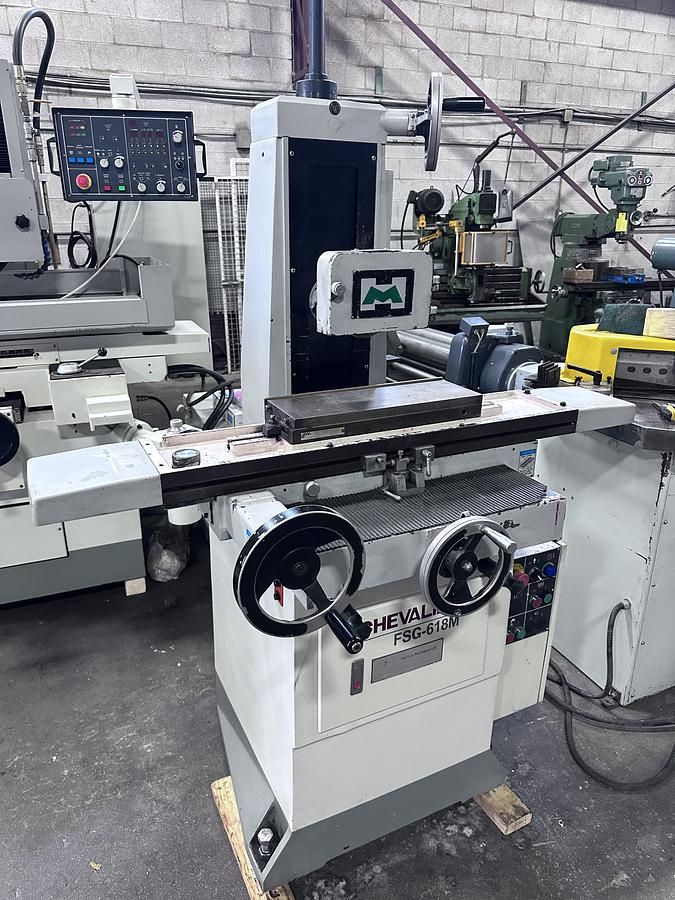

Chevalier FSG-618M

Table size: 5.75″ × 18″
Spindle motor: 2 HP
Spindle speed: 3450 RPM
Max grinding width: 6″
Max grinding length: 18″
Grinding wheel diameter: 8″
Grinding wheel width: 0.5″
Grinding wheel bore: 1.25″
Crossfeed travel (Y axis): 7″
Longitudinal travel (X axis): 19″
Max distance table to spindle: 18″
Max workpiece weight: 462 lbs
Machine weight: 1480 lbs
Machine dimensions: 53″ × 36″ × 67″
Power: 575V / 3 phase / 60 Hz
Manual magnetic chuck 6″ × 18″
