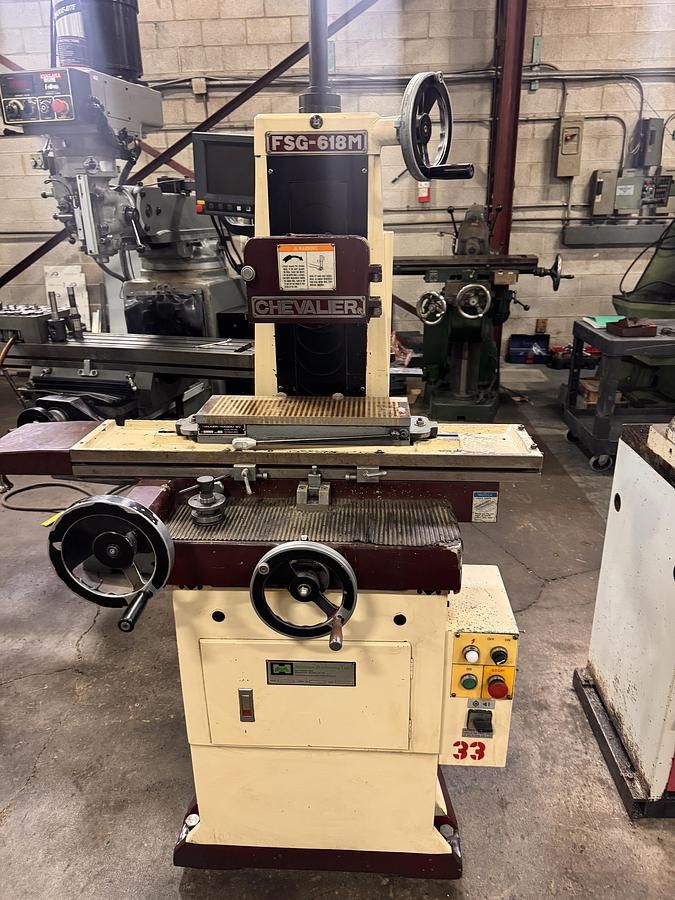

Chevalier FSG-618M

Table size: 5.75 × 18 in
Longitudinal travel (X): 19 in
Crossfeed travel (Y): 7 in
Maximum grinding width: 6 in
Maximum grinding length: 18 in
Maximum distance from table surface to spindle: 18 in
Spindle motor: 3 HP
Spindle speed: 3450 rpm
Grinding wheel diameter: 8 in
Grinding wheel width: 0.5 in
Grinding wheel bore: 1.25 in
Maximum workpiece weight: 462 lb
Manual magnetic chuck
Machine dimensions (L × W × H): 53 × 36 × 67 in
Machine weight: 1480 lb
