Chevalier GU1124A

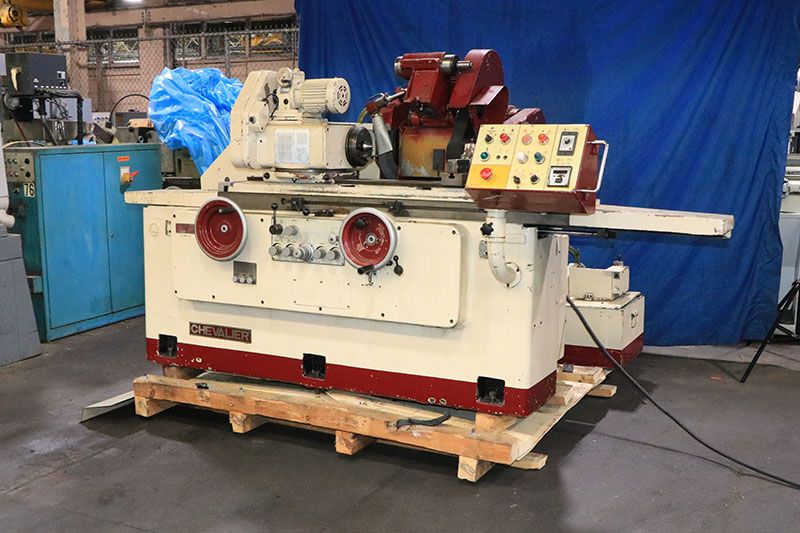

CHEVALIER GU1124A
1992

Max swing over table: 10.6"
Distance between centers: 23.6"
Max workpiece weight: 286 lbs
Traverse speed: 2 to 157 IPM
Table swivel clockwise: 9°
Table swivel counterclockwise: 4°
Grinding wheel size: 14" dia. x 2" wide x 5" bore
Wheelhead swivel (left/right of center): 30°
Grinding wheel spindle speeds: 1600, 1900 RPM
Wheelhead displacement per handwheel rev (coarse): 0.0625"
Wheelhead displacement per handwheel rev (fine): 0.0000625"
Rapid hydraulic infeed stroke: 1.57"
Max infeed travel: 7.87"
Infeed handwheel per revolution: 0.039"
Max automatic infeed travel: 0.029"
Auto infeed rough increment: 0.0002" to 0.0016"
Auto infeed fine increment: 0.0001" to 0.0002"
Auto plunge rough feed: 0.0004" to 0.059"
Auto plunge fine feed: 0.00004" to 0.0004"
Workhead spindle speeds (6 ranges): 10 to 507 RPM
Workhead spindle taper: #4 Morse
Workhead swivel range: 120° (90° CCW, 30° CW)
Tailstock spindle taper: #4 Morse
Tailstock spindle travel: 1.18"
Machine weight: 5,525 lbs

Swing-down I.D. grinding attachment
I.D. grinding spindle
Hydraulic longitudinal table traverse
Dual rate automatic infeed at table reversal
Dual rate automatic plunge feed
Sparkout timer
Hydraulic rapid wheelhead advance/retract
Swing-down internal grinding attachment
Dual live/dead headstock spindle
Center in workhead
Table-mounted single-point wheel dresser
Halogen work light
Operating manual and parts list
External hydraulic pump and tank
External coolant pump and tank
5 HP wheelhead drive motor
Wired for 230V operation
