China JDCPE-80/60A

Number of layers 3
Material Stretch film LLDPE
Film width (mm) 1000
Output (Kg/h) 120
Extruder 1 Layer ref: 80
Screw diam 80
Extruder 2 Layer ref: 60
Screw diam 60
Die width (mm) 1250
Additional information :
Machine size 6000mm*3000mm*1900mm
Total power 110k
Film thickness range: 10-50my

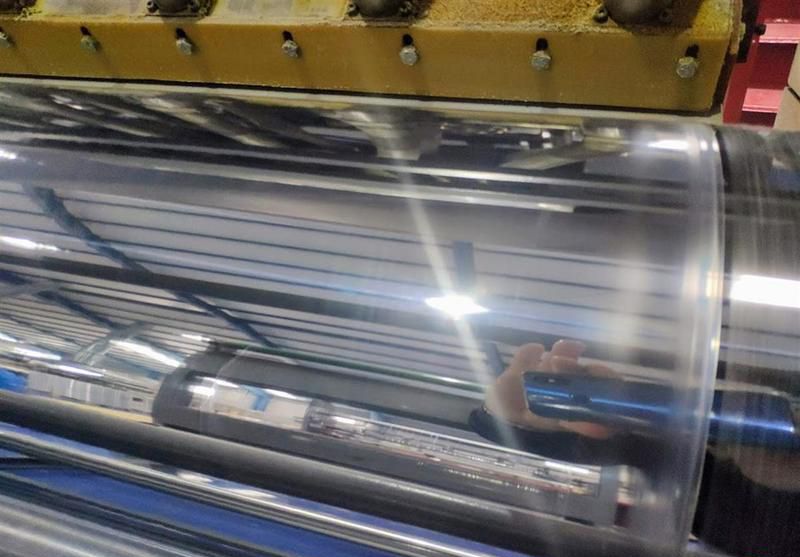

Cast film extrusion lines are commonly used to extrude plastic films especially for flexible packaging industry.
In a cast film extruder PE, PP or PA granulates (or other polymers) are melted inro an extruder and pushed through a flat extrusion die (T die),
extruding a sheet of molten polymer onto a cooled roller (chill roll).
