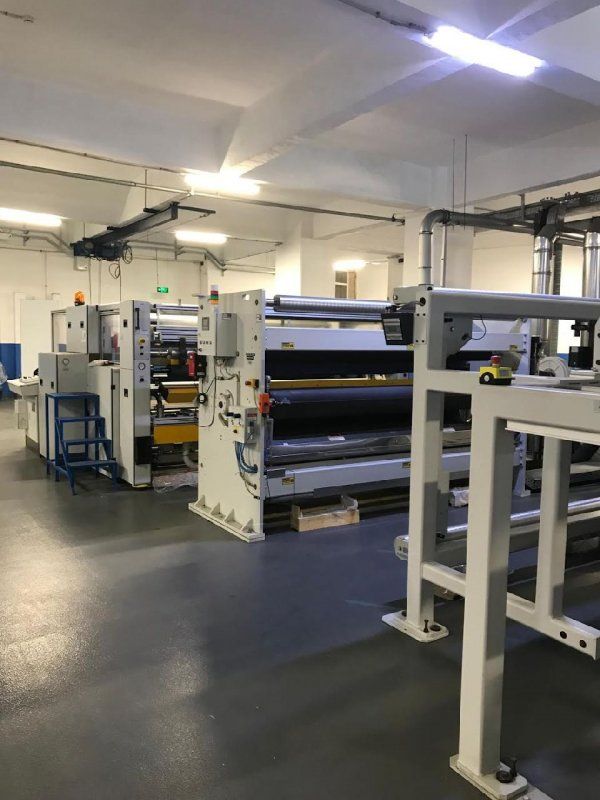

Reifenhauser Midex 3000

Number of layers 3
Material CPP and CPE
Film width (mm) 2550
Speed (m/min) 350m/min
Output (Kg/h) PP-1000kg/h, PE - 800kg/h

Extruder 1 Layer ref: A
Screw diam 1 80mm
Description 1 Barrier screw diameter 80mm - 30L/D, Manual screen changer,
type HS-080/300, 3-component batch dosing system 250/3 HT

Extruder 2 Layer ref: B
Screw diam 2 150mm
Description 2 arrier screw diameter 150mm - 30L/D,
Intermittent hydraulic screen changer EBS/a 148-1 with 1 screen,
3-component batch dosing system 500/3 HT

Extruder 3 Layer ref: C
Screw diam 3 80mm
Description 3 Barrier screw Ø 80mm - 30L/D, Manual screen changer,
type HS-080/300, 3-component batch dosing system 250/3 HT

Head description Edge pinning by means of air nozzles
Die width (mm) 2650mm
Thickness controll system Yes, with beta source
Note Ash Slitter rewinder included

Cast film extrusion lines are commonly used to extrude plastic films especially for
flexible packaging industry. / In a cast film extruder PE, PP or PA granulates
(or other polymers) are melted inro an extruder and pushed through a
flat extrusion die (T die), extruding a sheet of molten polymer onto a
cooled roller (chill roll).
