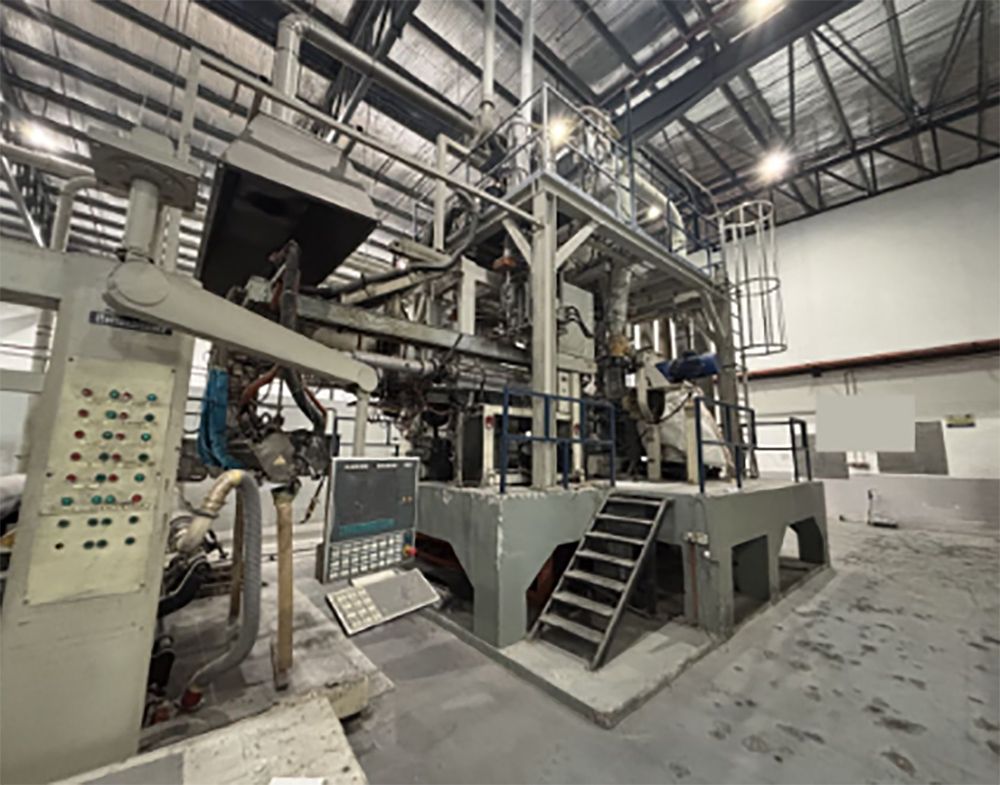

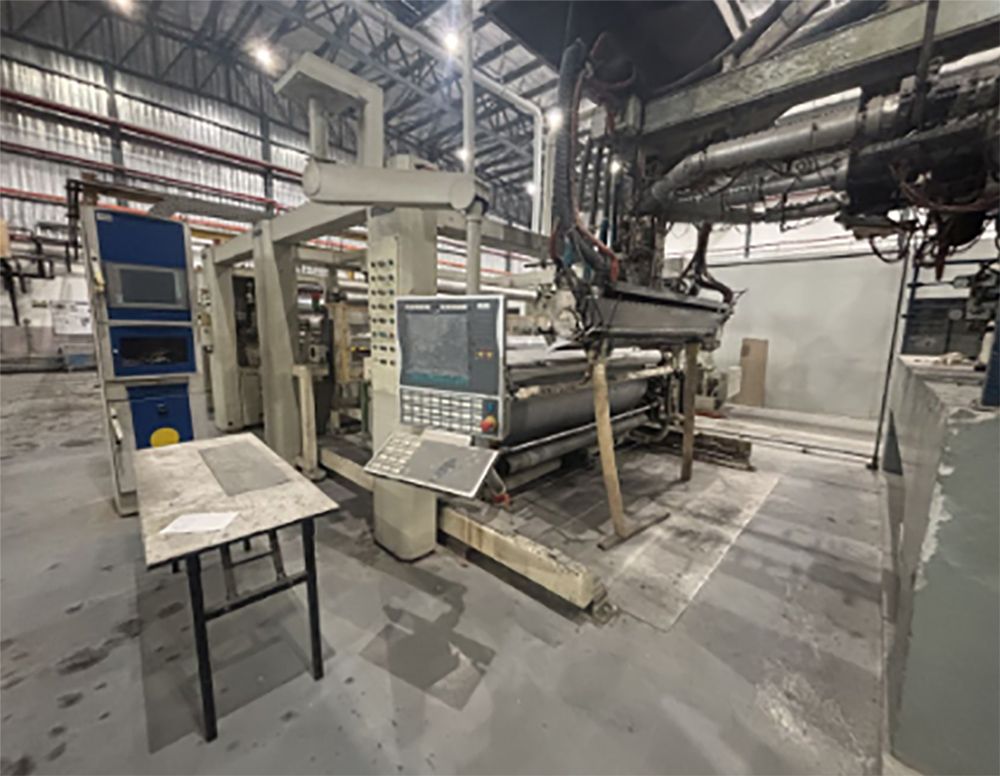

Reifenhauser Film extrusion lines - Cast film

Reifenhauser Film extrusion line - Cast film

Number of layers: 5
Film structure: ABBBC
Material: CPP
Film width (mm): 2200
Speed (m/min): 200m/min
Output (Kg/h):
Extruder 1 Layer ref: : A
Screw diam 1: 70mm L/D 25
Description 1: DC Motor 65kW, Barrel Reiloy 121, manual screen changers, gravimetric dosing unit
Extruder 2 Layer ref: : B
Screw diam 2: 120 mm L/D 30
Description 2: DC Motor 157kW, Barrel Reiloy 121, manual screen changers, gravimetric dosing unit
Extruder 3 Layer ref: : C
Screw diam 3: 50mm L/D25
Description 3: DC Motor 30kW, Barrel Reiloy 121, manual screen changers, gravimetric dosing unit
Head description: REIcofeed 5 layer ABBBC, Automaric thickness profile control, flexlip and thermal bolts, air knife
Die width (mm): 2500mm

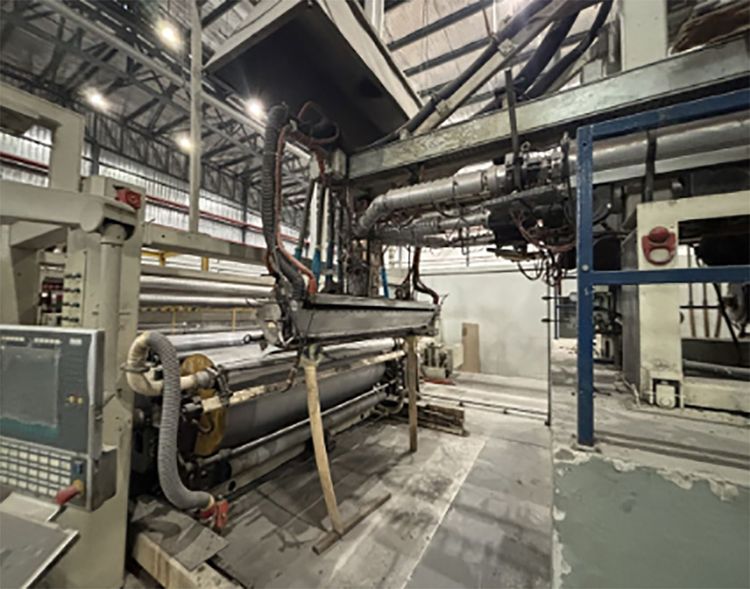

Chill roll unit: diameter 800mm, edge pinning, vacuum box
Thickness controll system: Automatic thickness profile control, thickness gauge beta rays, (KR 85), regulation via thermal expansion bolts
Rewinder max reel diameter (mm): 1000
Rewinder description: MFA -D 1000, automatic change and inline slitting

Extruders are of 2003, remaining parts are from 2008

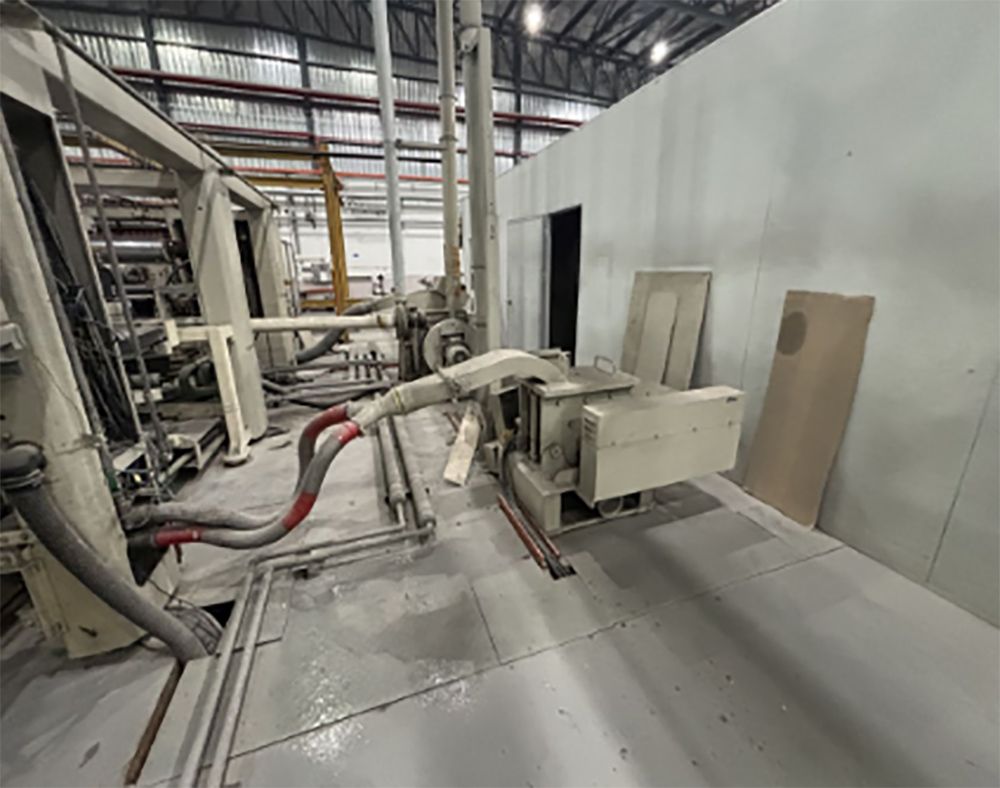

Edge trim recycling
