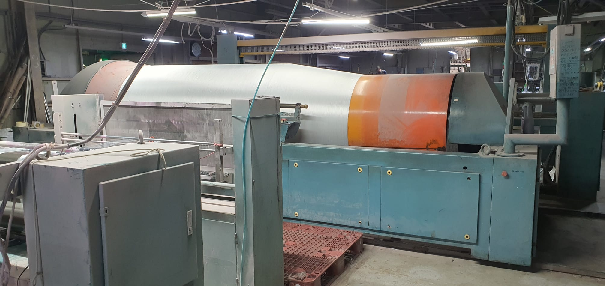

Chinese made GA163D Sectional warper 300 Cm

Ref : 2727796-1-GO

Condition : Used

Manufacturer : Chinese made

Model : GA163D Sectional warper

Width : 300 Cm

Year(s) : 2008

Quantity : 1

Location : Seller or machines location:
ASIA (North East)

Last check : 02 Mar. 2026

Warping width 2000 ~ 3600mm
Warping speed : 0 ~ 800 m/min
Drum dia. : 1026 mm
Drum taper length : 1010
Angle pf taper : 9'
Whole - movable Beaming Unit

Beaming Roller width 4300mm
Beaming flange 800mm ~1000mm dia
Beaming speed : 0 ~ 100.0 ~ 200m/min.
Strip positioning : Automatically
Touch screen
Inverter control : 37kw new
Main motor 45Kw

Creel : 480 pos
