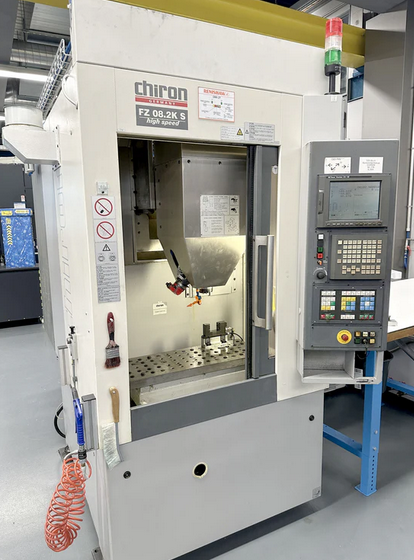

Chiron FZ 08 08.2 S 4-Axis Machining Center 4 Axis

Longitudinal travel (X-axis) 450 mm
Transversal travel (Y-axis) 270 mm
Vertical travel (Z-axis) 310 mm
Number of axes 4
Number of spindles 1
Table length 770 mm
Table width 290 mm
Drill capacity 12 mm
Max. taping diameter M8
Tool changer number of tools 23
Tool diameter max 45 mm
Tool diameter with adjacent free pockets 100 mm
Tool length 160 mm
Max. tool weight 1 kg
Tool change time 0.8 / 2.3 s
Chip-to-chip time 2.2 s
Spindle nose HSK-A32 DIN 69893
Distance spindle nose to table 170–450 mm
Spindle speed from 0 t/min to 30,000 t/min
Rapid traverse 75 m/min
Air connect 6 bar
Voltage 50 Hz 3x400 V
Spindle motor 7 kW
Total power 15 kVA
Machine weight 2500 kg
Overall dimensions Length 2308 mm
Overall dimensions Width 1405 mm
Overall dimensions Height 2447 mm
GE Fanuc Series 21i-M control
Set of collets
Tool break control
Chip conveyor
4th-axis dividing attachment Peiseler AWUP 100
Set of toolholders
Lamp
Rinsing gun
RS232 interface
Switch cabinet air conditioner
Status light
