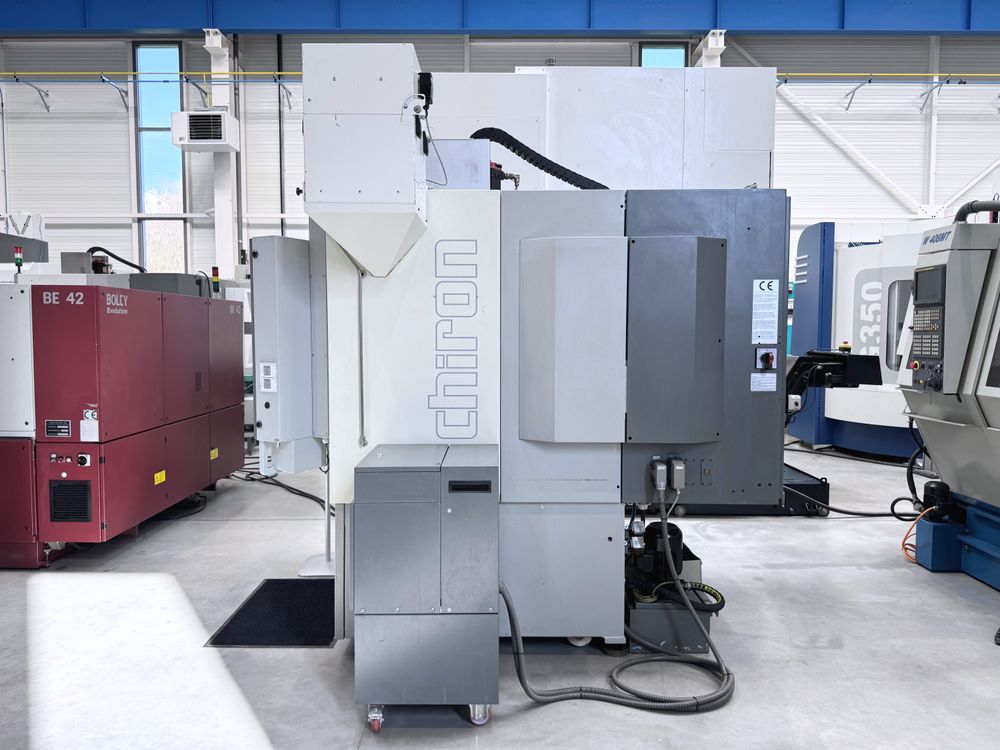

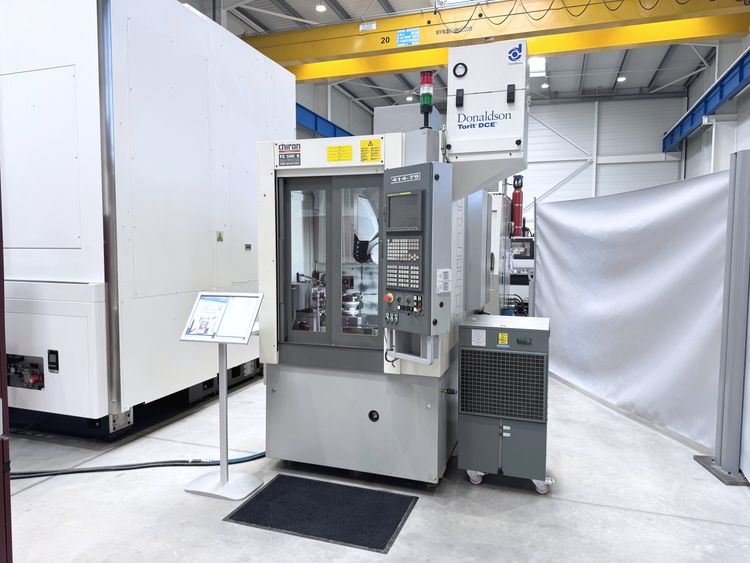

CNC Machining Centre CHIRON FZ 08K S Magnum High Speed Plus (HSP)
TECHNICAL CHARACTERISTICS:
Year of manufacturing: 2007

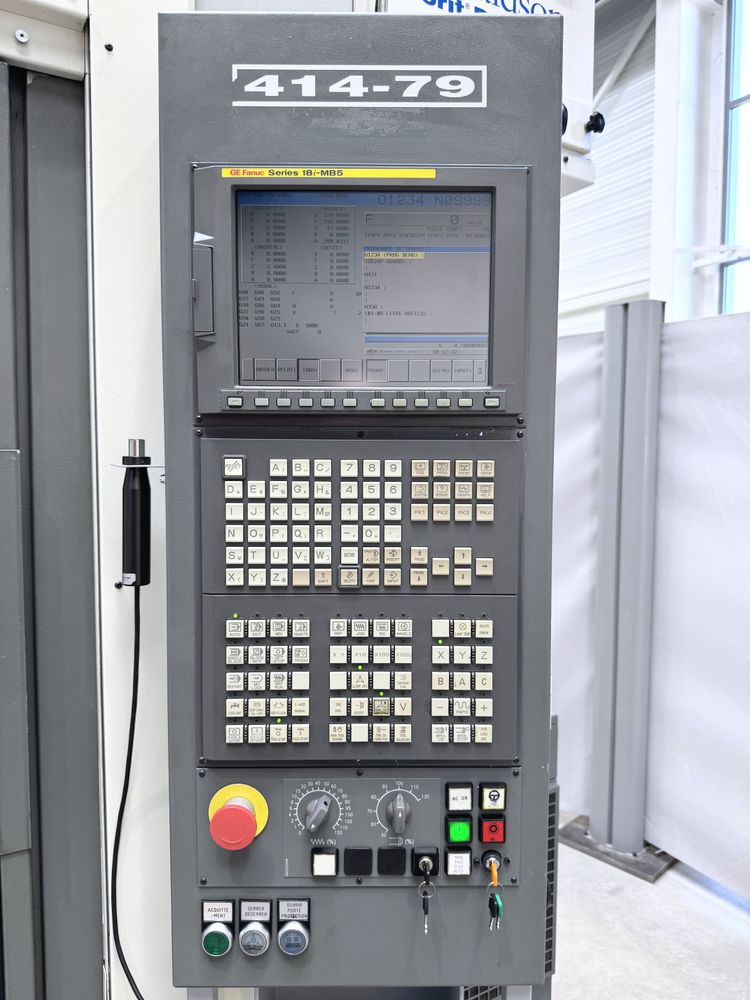

CNC control: FANUC 18i-MB5
Number of axes: 7
Stroke X axis: 450 [mm]
Stroke Y axis: 270 [mm]
Stroke Z axis: 310 [mm]
Traversing feeds X, Y and Z axes: 75000 [mm/min]

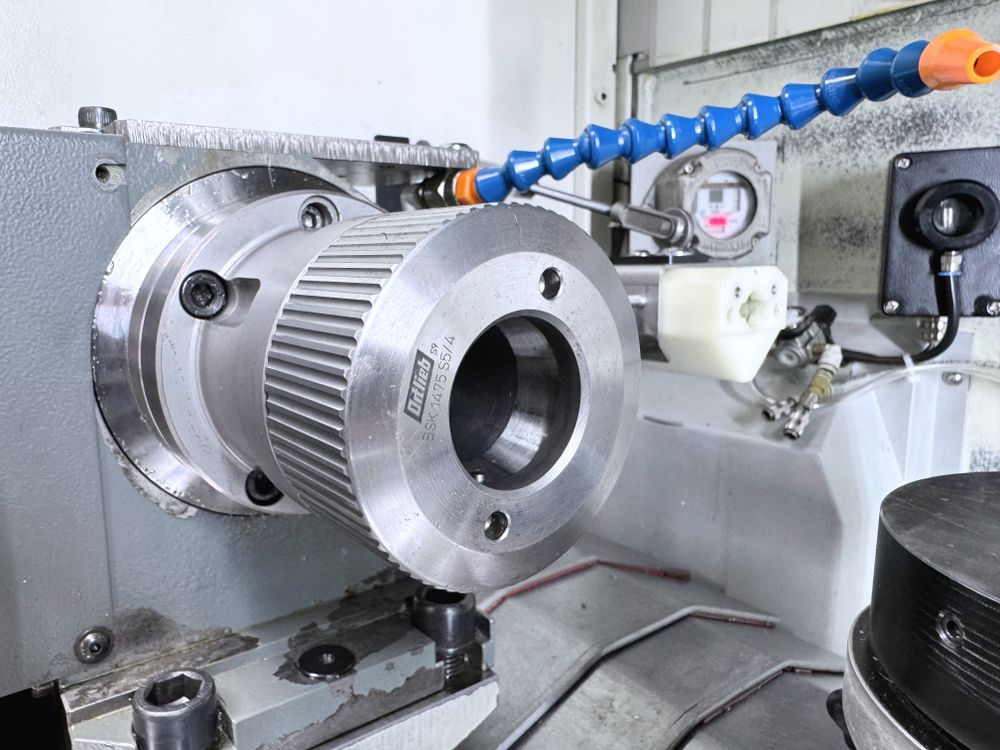

Max. bar diameter in turning spindle: 32 [mm]
Angular A axis stroke: 360 [°]
A axis indexing precision: 0.001 [°]
B axis swivelling stroke: -20° / +115 [°]
B axis indexing precision: 0.001 [°]

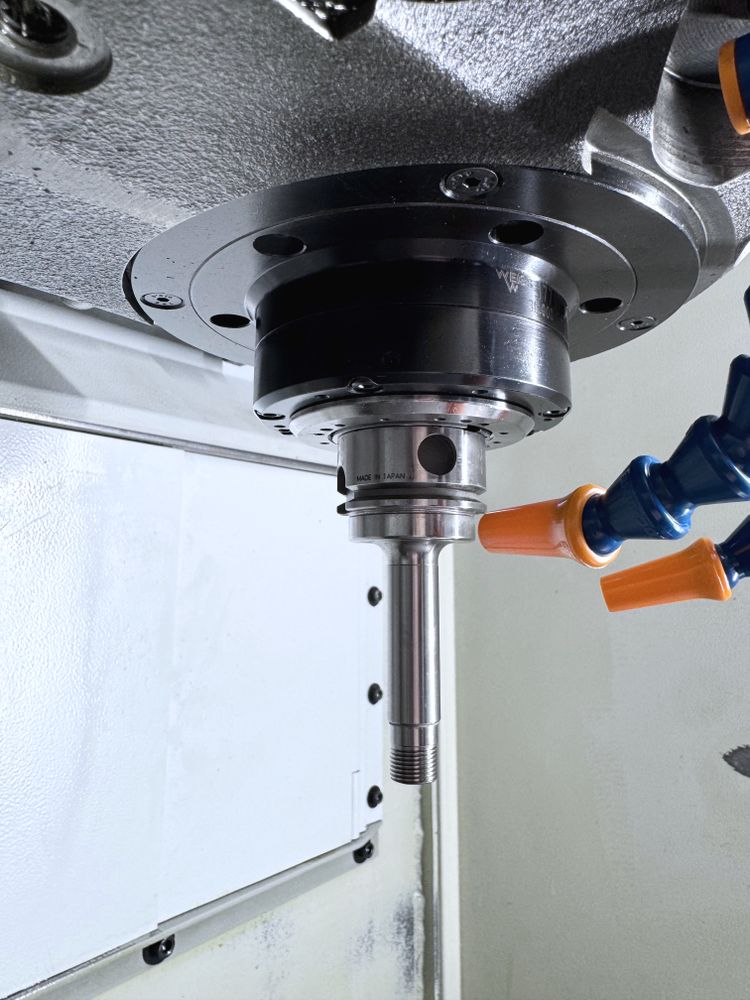

Spindle type: HSK40
Max. spindle speed: 30000 [rpm]
Tool changer magazin number of stations: 40
Total power required: 17 [kVA]
Supply voltage: 400 [V]
Dimensions: 1500 x 2600 x 2300 [mm]
Weight: 3400 [Kg]
INCLUDED EQUIPMENT:

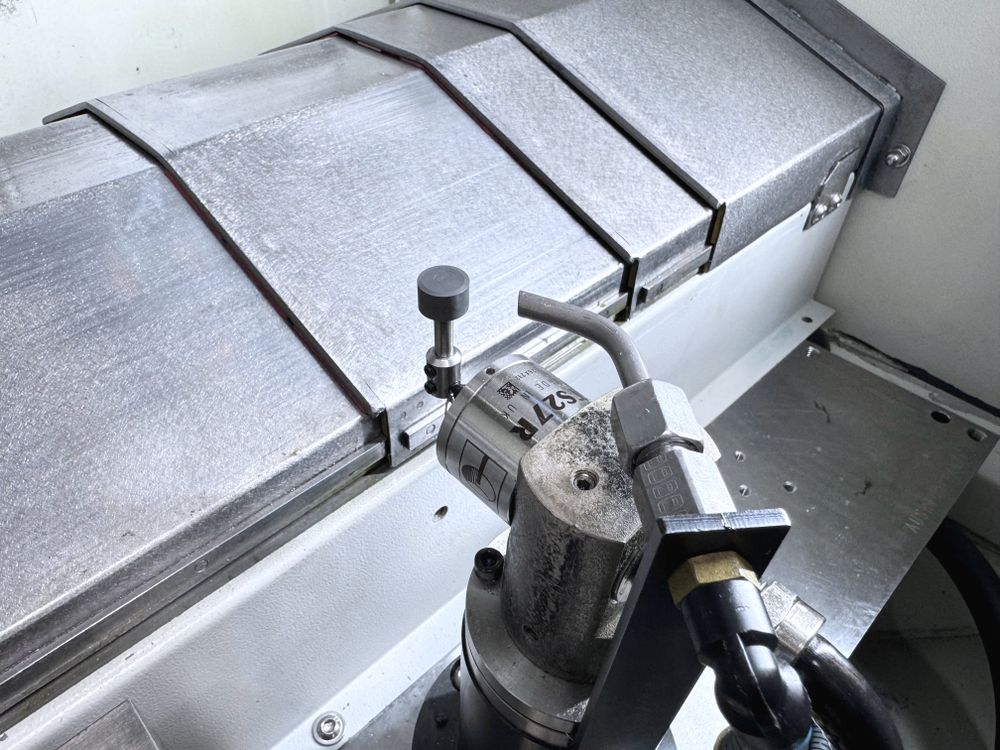

x1 RENISHAW tool probe, type TS27R
x1 spindle cooling unit
x1 coolant tank
x1 unit for 6th-face machining
x1 SCHUNK clamping vice

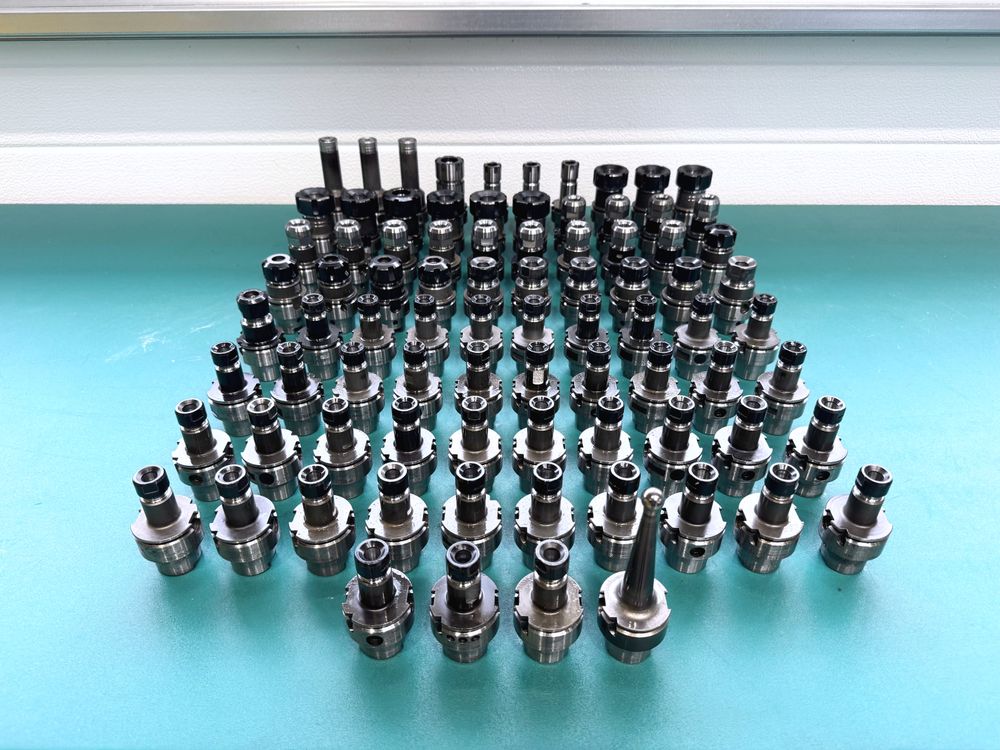

x84 tool holders - type HSK40
x14 collets - type F35
x1 electrical cabinet air conditioning unit

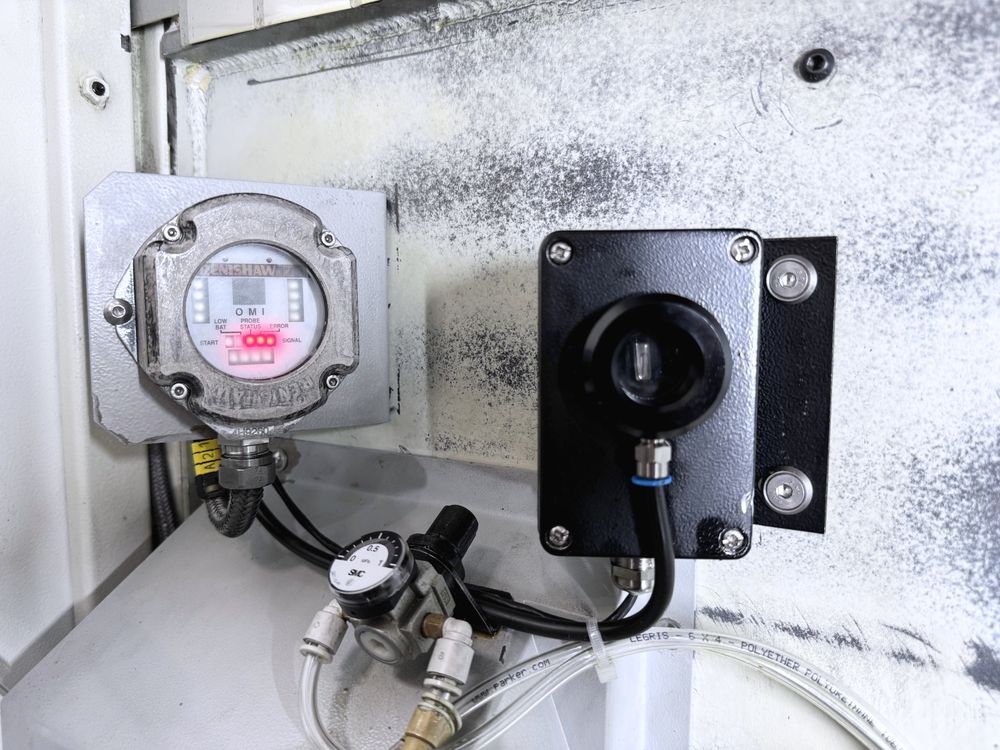

x1 DONALDSON mist extraction unit - type Torit DCE
x1 washing gun
x1 three-color status light
x1 MACHINING INSTRUCTIONS manual
x1 operator manual
x1 programming manual
Machine visible under power in our premises by appointment.
Price on request, loading on truck included.
Possibility of shipping Worldwide.
