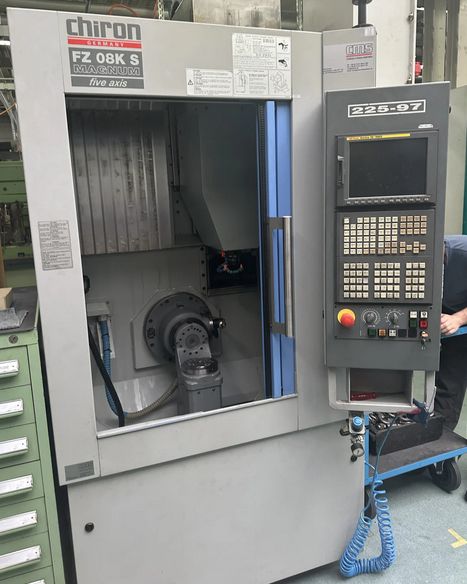

Chiron FZ 08 KS Magnum 5 Axis
Ref :
2773278-3-MT
Condition :
Used
Manufacturer :
Chiron
Model :
FZ 08 KS Magnum
Nb Of Axis :
5 Axis
Year(s) :
2007
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Longitudinal travel X 450 mm
Transversal travel Y 270 mm
Vertical travel Z 310 mm
Drill capacity 12 mm
Max tapping diameter M 8
Tool magazine positions 24
Tool diameter max 47 mm
Tool diameter with free adjacent pockets 100 mm
Tool length 160 mm
Max tool weight 1.2 kg
Tool change time 0.8 / 2.3 s
Average chip-to-chip time 2.2 s
Spindle nose HSK-A 40 DIN 69893
Spindle speed 0–36000 t/min
Rapid traverse 75 m/min
Air connect 6 bar
Voltage 3x400 V 50 Hz
Spindle motor 7 kW
Total power 14 kW
Total power 19 kVA
Machine weight 3400 kg
Machine dimensions L2308×W1405×H2447 mm
Tool break control
Interface serial port RS 232
Switch cabinet air conditioner
Status light
